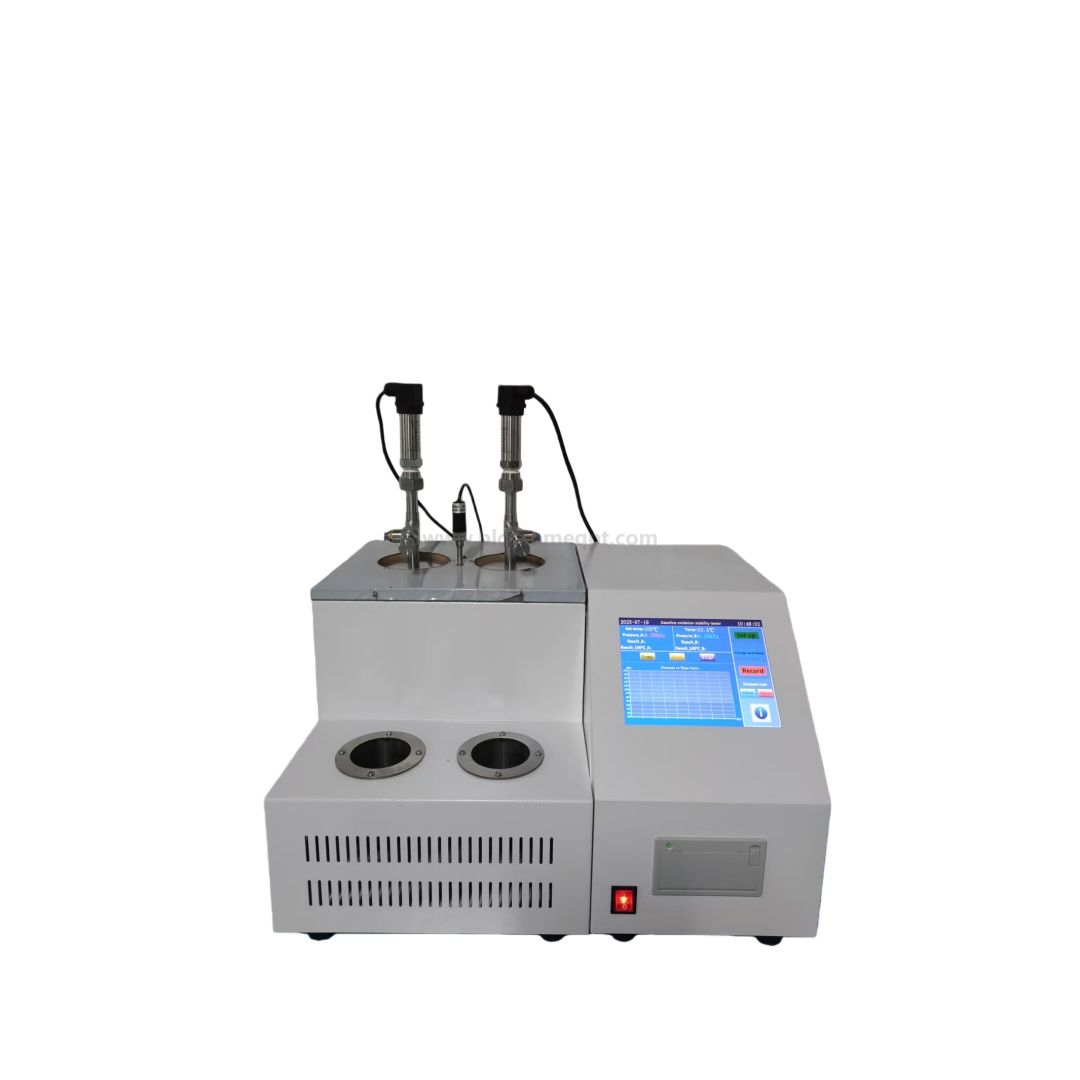

BLS-525 Automatic Gasoline Oxidation Stability Tester

Application

This instrument is designed and manufactured according to the requirements of GB/T 8018-87 "Gasoline Oxidation Stability Determination Method (Induction Period Method)" of the People's Republic of China, and is suitable for determining the oxidation stability of gasoline under accelerated oxidation conditions in accordance with GB/T 8018 standard.

Main technical parameters

1. Working power: AC220V±5%, 50Hz.

2. Heating power: 2000W

3. Pressure measurement range: (0～1600)kPa, accuracy: ±2‰.

4. Temperature range and accuracy: room temperature ~ 100.0℃≤±1℃

5. Test form: Two-bomb design, two samples can be made at the same time,

convenient for parallel testing.

6. Ambient temperature: ≤30℃

7. Relative humidity: ≤85%

Main features:

The instrument is mainly composed of a metal bath, an oxygen bomb assembly and an oxygen bomb bracket, a gas path controlled by a solenoid valve, a color touch screen human-computer interaction system and a printer system.

The instrument comes with a 5.7-inch color touch screen, which can display the temperature and pressure curve of the sample in real time. The user can set the pressure of the sample in real time, or modify the instrument time, self-check various parts of the system, etc. The instrument has a built-in 64M NAND FLAH, which can store the test results. It adopts an embedded system design, and the user can view historical data and print out the results using the printer on the instrument.
