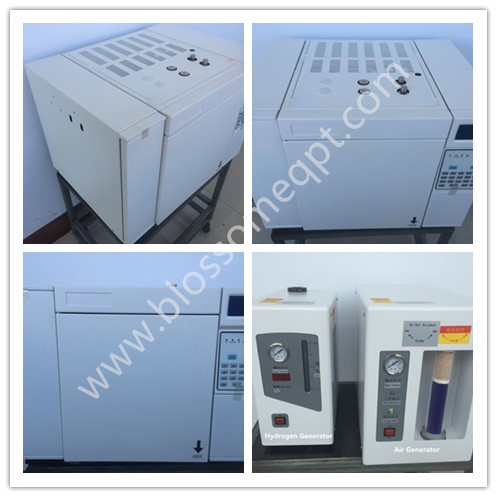

Customer from Germany Purchased Transformer Oil Gas Chromatography in May 2019

The gas chromatography can test the dissolved content of H₂, O₂, N₂, CH₄, C₂H₂, C₂H₄, C₂H₆, CO, CO_2，C₃H_8，C₃H₆ in insulating oils such as transformer oil.

II.Features and Advantages

1.Advanced column installation mode: adopts three columns, three detectors (FID I.TCD. methane reformer FIDII) process, which can measure the content of H₂, O₂, N₂, CH₄, C₂H₂, C₂H₄, C₂H₆, CO, CO_2，C₃H_8，C₃H₆  only by injecting sample once, fast and convenient.

2. It adopts 320 x 240 dot matrix 5.7-inch large screen LCD English display, real-time display of temperature and operating conditions of each channel, perfect online monitoring;

3.Power-on self-test, six-way independent temperature control (vaporization chamber, capillary vaporization chamber can independently control temperature), fifth-order program temperature heating function;

4.Wide-range self-diagnosis function, when the instrument fails, the instrument can automatically display the fault phenomenon, fault code, fault cause, and quickly solve the problem to ensure the best working condition of the laboratory;

5.Over-temperature protection: If any channel exceeds the set temperature, the instrument will automatically power off and alarm;

6.Carrier gas shut-off and gas leakage protection function: when the carrier gas pressure is insufficient, the instrument automatically cuts off the power supply and stops heating, which effectively protects the column and the thermal conductivity detector from damage;

7.Automatically track the temperature and dynamically adjust the damper angle. It can precisely control the temperature even near room temperature;

8.Advanced gas path process. The hydrogen flame detector, thermal conductivity detector and reformer can be used at the same time;

9.High-performance detector and methane reformer. The detection capability fully meets the determination of the gas component content in the transformer oil by the Ministry of Power;

10. Adopts secondary split column system with fast analysis speed and good reproducibility;

11. The instrument has completed the sufficient aging test before leaving the factory. The parameters have been already set. The user only needs to switch on and off easily, and the operation is very convenient.
