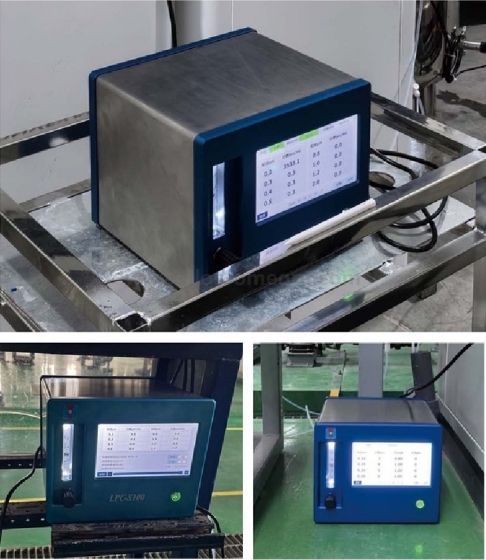

LPC-S
I.Application
Using the principle of light scattering to measure the size and concentration of nanoscale particles in clean liquids such as ultrapure water and chemical reagents(such as electronic fluorinating liquids).Each set of product includes sensor,operating software,flow regula-tion,control system,display system,data output and printer.
Application Field:
1.Preparation of ultrapure water
2.Semiconductor
3.Electronic carrier board
4.Life sciences
5.Fine Chemical Industry
6.Cleaning quality control
7.Nanoscale filtration
II.Features
1.The detection time and volume can be adjusted arbitrarily, with rich functions and simple operation;
2.Multiple data output methods: touch screen, printer, USB, TCP/IP, RS485, 4-20mA, etc;
3.Equipped with real-time/mean,cumulative/difference counting dual modes,switchable by oneself;
4. It has multiple alarm forms such as leakage, restriction, and optical power;
5. Corrosion resistant pipeline, suitable for most detection liquids;
6.Both Chinese and English systems.
III.Technical Parameters
Parameter | S series particle counter |
Particle size range | S100A:0.1-2(μm) S200A:0.2-5(μm) S500A 0.5-20(μm) |
Default channel | S100A 0.1,0.15,0.2,0.3,0.5,0.8,1,1.2(μm) S200A:0.2.0.3,0.4,0.5,0.8,1,1.2,2(μm) S500A:0.5,0.8,1,1.2,2,5,10,15(μm) |
Channel | 8,customizable |
Sampling rate | 10-100mL/min(Default 50mL/min) |
Upper limit of concentration | 20000 particles/mL |
Upper pressure limit | 0.7MPa |
Joint specifications | 1/4PFA expansion joint |
Pipe diameter | 1/4 inch |
Internal storage | 150000 sets(can be exportedto USB and upper computer) |
Size | 400*300*300mm(Excluding protruding parts such as joints) |
Weight | 10KG |
