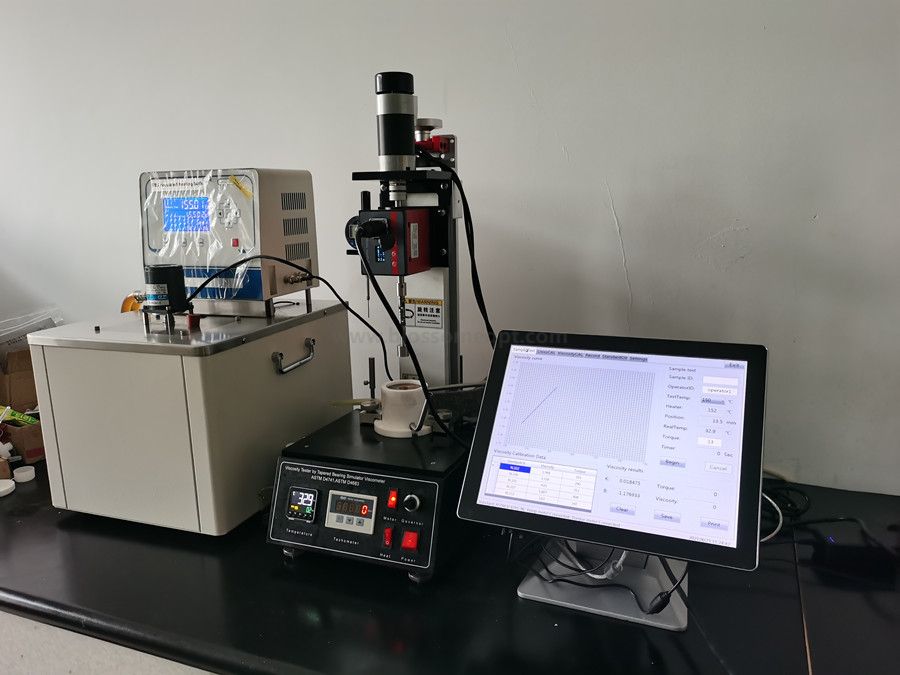

TBS High-Temperature High Shear Rate Viscometer BLS-4683

I.Application

BLS-4683 TBS High-Temperature High Shear Rate Viscometer conforms to ASTM D4683 Standard Test Method for Measuring Viscosity of New and Used Engine Oils at High Shear Rate and High Temperature by Tapered Bearing Simulator Viscometer at 150℃and ASTM D4741Standard Test Method for Measuring Viscosity at High Temperature and High Shear Rate by Tapered-Plug Viscometer. The ASTM D4683 covers the laboratory determination of the viscosity of engine oils at 150℃ and 1.0·106s-1 using a viscometer having a slightly tapered rotor and stator called the Tapered Bearing Simulator (TBS) Viscometer.

II.Features

1.Applicable standard: ASTM D4683 ASTM D4741;

2.Heating method: high temperature oil bath;

3.Test temperature: 100℃, 150℃;

4.Test station: 5

5.Operating system: Windows 7;

6.Results calculation: Dedicated software, Manual sampling, 5 tests per hour;

7.Do not need solvent cleaning, only need little fresh sample to flush;

8.Software will automatically calculates the calibration deviation of the standard oil;

9.Be able to store and print the test results;

III.Technical Parameters
