BLS-2500A
BLS
Application

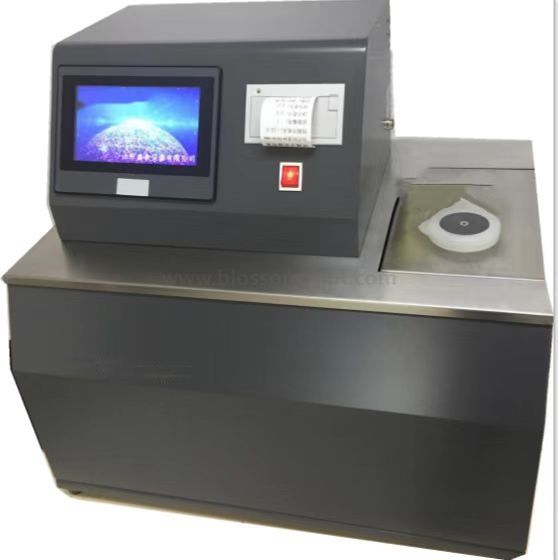

BLS-A2500 Automatic Cloud Point Analyzer is designed and manufactured in accordance with the requirements of the People's Republic of China Standard "Petroleum Turbidity Test Method (GB/T6986-2014)". It uses a main control component composed of multiple single-chip microcomputers, automatic cooling, automatic constant temperature, automatic detection, and automatic printing and output results. It adopts a dry trap-shaped cold bath box with small hysteresis, fast cooling, and no need for other cooling media, which is convenient for use and maintenance. It adopts high-performance infrared detection technology with high detection sensitivity and strong reliability.
Cloud point: refers to the high temperature at which hydrocarbon microcrystals or water mist begin to appear in the oil under test conditions, making the oil turbid.
Technical parameters and features:
1. Compliance with standards: GB/T6986 ASTM D2500
2. Human-machine interface: 7-inch color LCD touch screen;
3.Refrigeration method: fully enclosed high-efficiency refrigeration compressor.
4. Test cold trap: 1.
5.Detection method: imported photoelectric switch detection
6.After upgrading, historical data can be stored for easy query; at the same time, it can be equipped with U disk output function.
7.After the test is completed, if there is no human operation, the automatic shutdown time of the refrigerator can be set arbitrarily within 0-50min to avoid frequent opening of the compressor and extend the service life of the instrument.
8. Standard micro printer, automatic measurement, automatic thermal printing
9.Number of test holes: single hole
10. Temperature range: +30℃～-70℃
11.Temperature control accuracy: ＜±0.1℃
12.Sample volume: Place at the scale line of the test tube
13.Refrigeration medium: Metal bath refrigeration
14.Printer: Small thermal printer
15.Storage method: The experimental results can store 199 sets of historical data for easy query;
16.Result output: It can also be equipped with a U disk output function and output to the PC for long-term storage
17.Output format: The result U disk output format is CSV or excel.
18.Data memory: The memory of the microcomputer instrument can be expanded to 16G.
19.Remote upgrade: With TCP network transmission function, the software can be upgraded remotely later (optional)
20. Data management: Can be connected to limis system (optional)
21.Instrument size: 650*480*620mm Instrument weight: 75kg
22.Packing size: 690*520*660 Packing weight: 80kg
