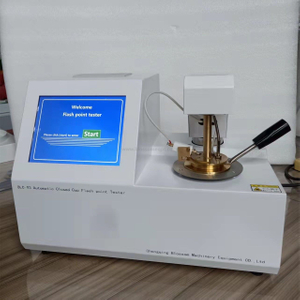

Automatic Abel Closed Cup Flash Point Tester Abel-170

Features
1.7-inch high-resolution LCD English display, touch screen buttons.
2.All English man-machine interface, fully automatic, intuitive and easy to operate.
3.Electronic ignition, electronic flame, no need to connect gas source, energy saving and environmental protection, ensuring laboratory safe use.
4.The instrument adopts German imported high-precision temperature sensor to detect temperature.
5.When the sample reaches the preset temperature, the ignition starts automatically and the sample flash point is automatically detected.
6.The instrument adopts German imported detector to detect the flash point, with short response time and high sensitivity.
7.Automatic detection of atmospheric pressure; the test results are automatically atmospheric pressure compensation.
8.The instrument is equipped with fault self-diagnosis system and reminder function; it can store multiple experimental results.
9.It has time, date, and week setting functions.
10.It has a temperature rising limit function, and reaches the limit temperature test instrument to automatically stop the test and prompt.
11.When the test is completed, the experiment number and result are automatically saved and printed.
Availability:
Quantity:
  • Abel-170

Power supply

AC220V±10%,50Hz

Flash point measurement range

-30.0℃~75.0℃

Accuracy measurement range

-8.5℃~75.0℃

Sample heating rate

1℃/min

Detection interval

0.5℃

Maximum power consumption

≤700W(each parts not work at the same time)

Heating power

150W

Cooling power

300W

Ignition rod power

120W

Operation interface

7 inch high resolution LCD touch screen with resolution 800*480

Air pressure detection

Imported digital air pressure sensor chip, error: ± 0.3kPa at 25℃

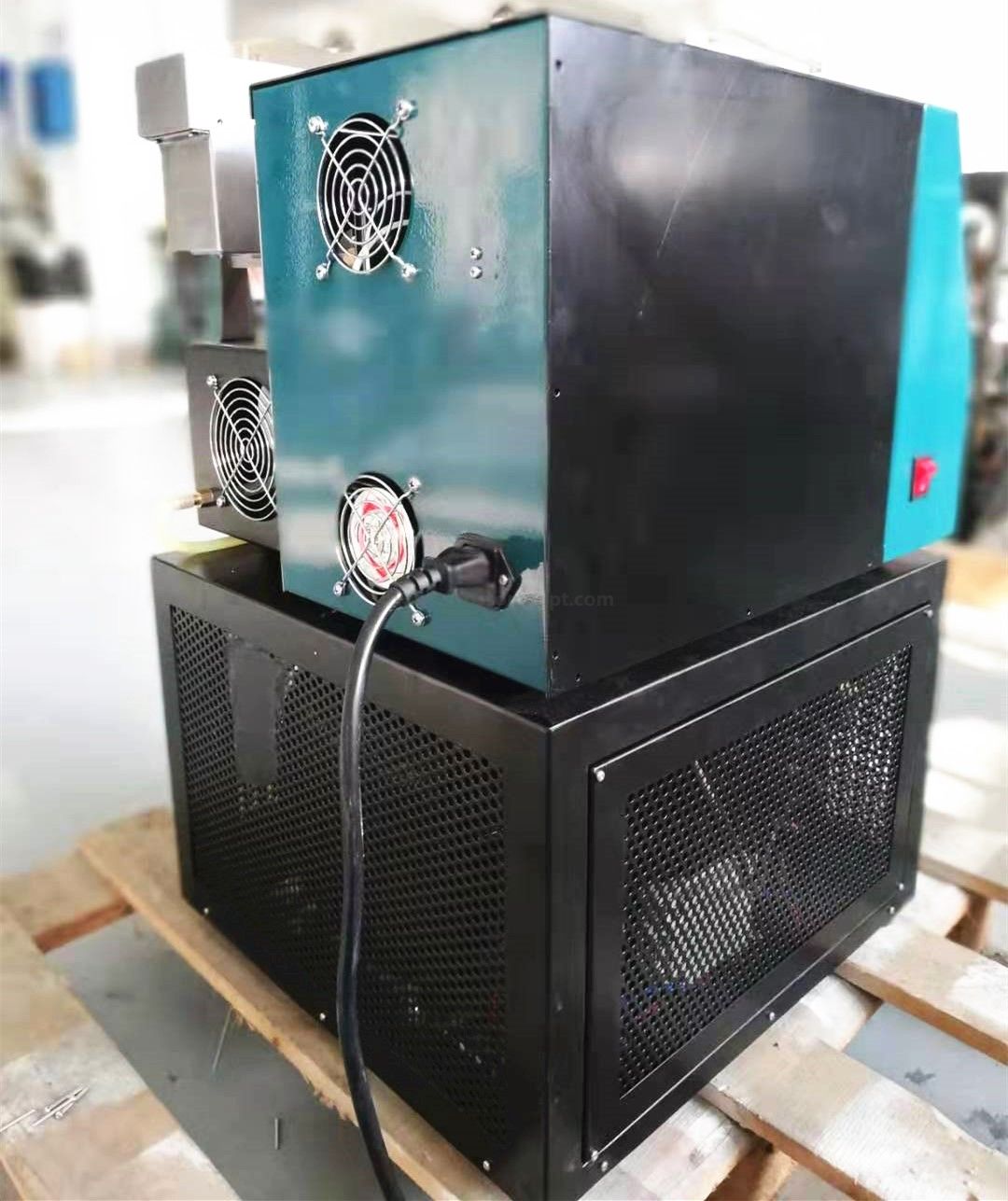

Cooling component

Compressor refrigeration test bath

Heating method

Electric heating test bath

Printer

Embedded thermal micro printer

Test result storage

256 pieces of test result can be stored
