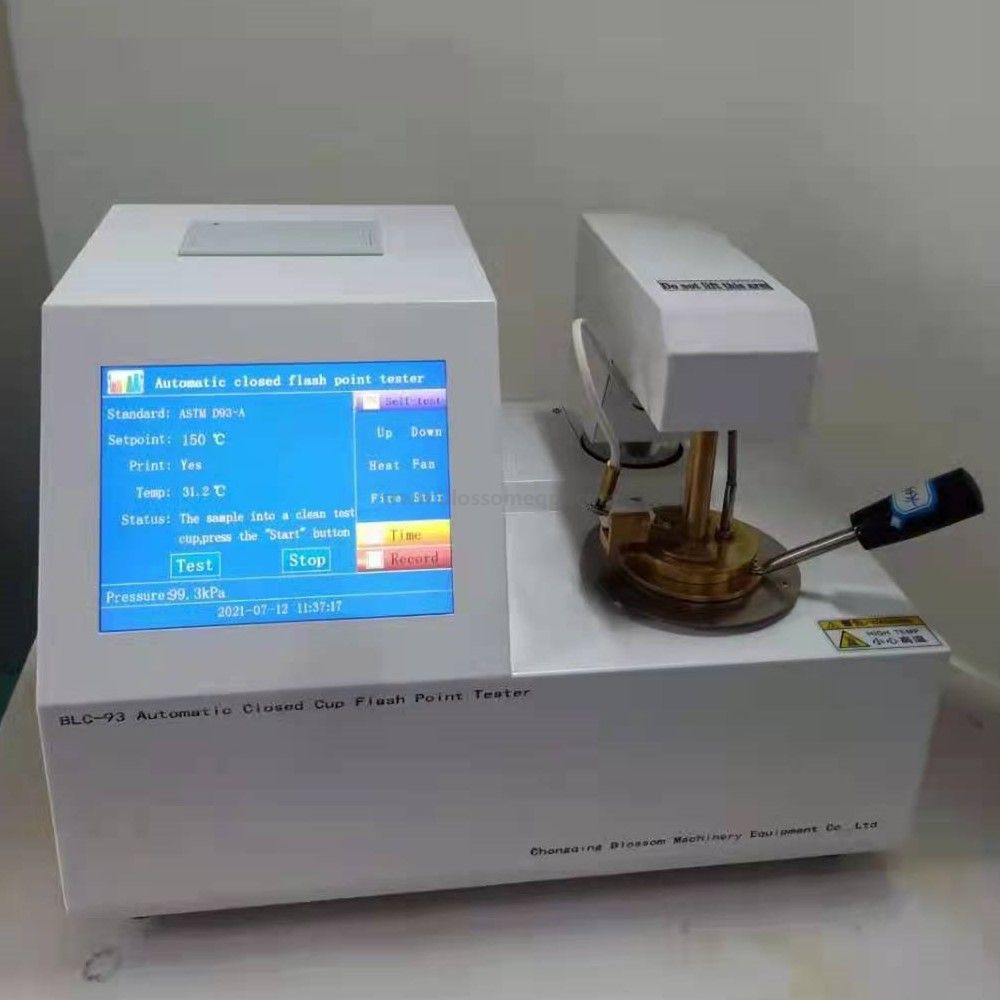

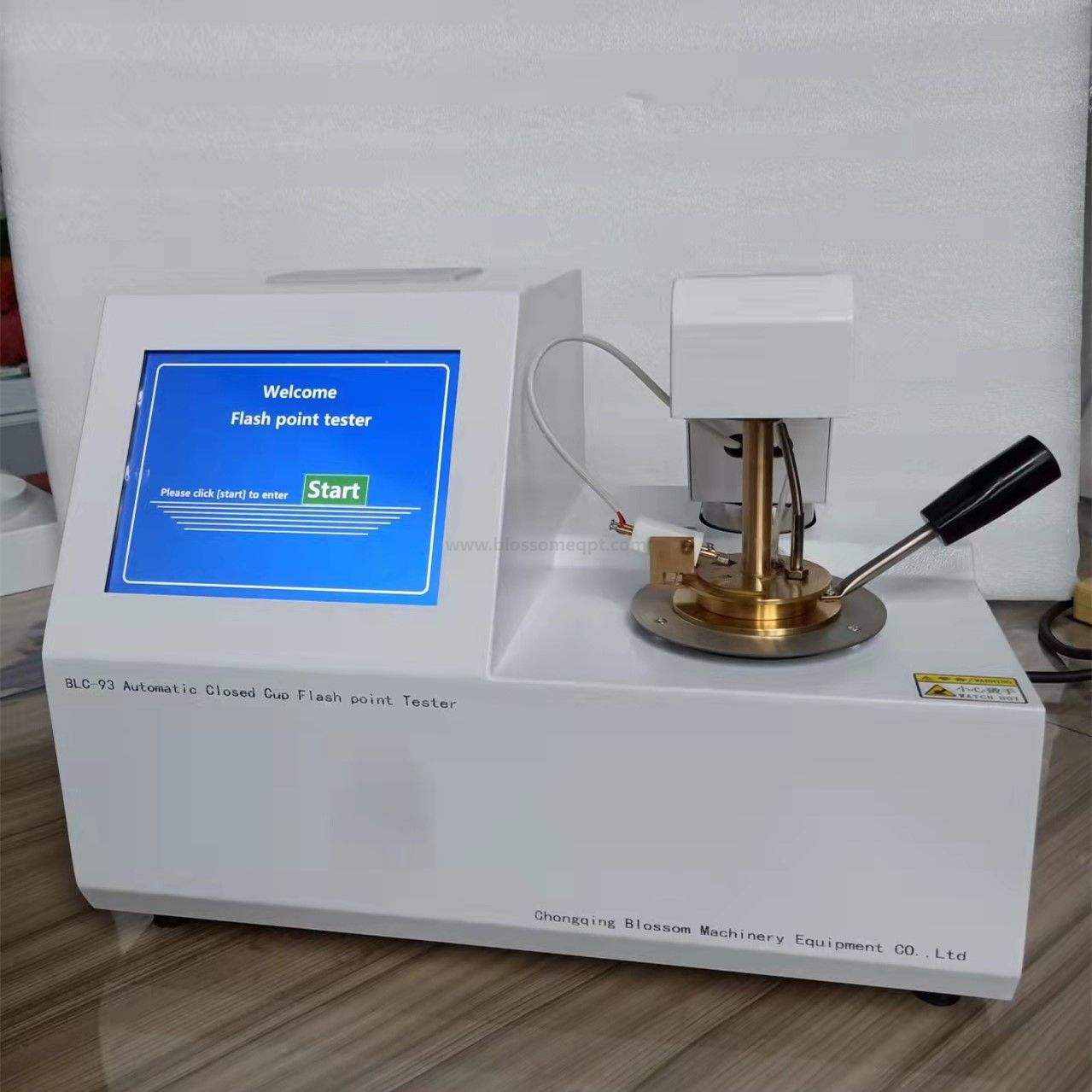

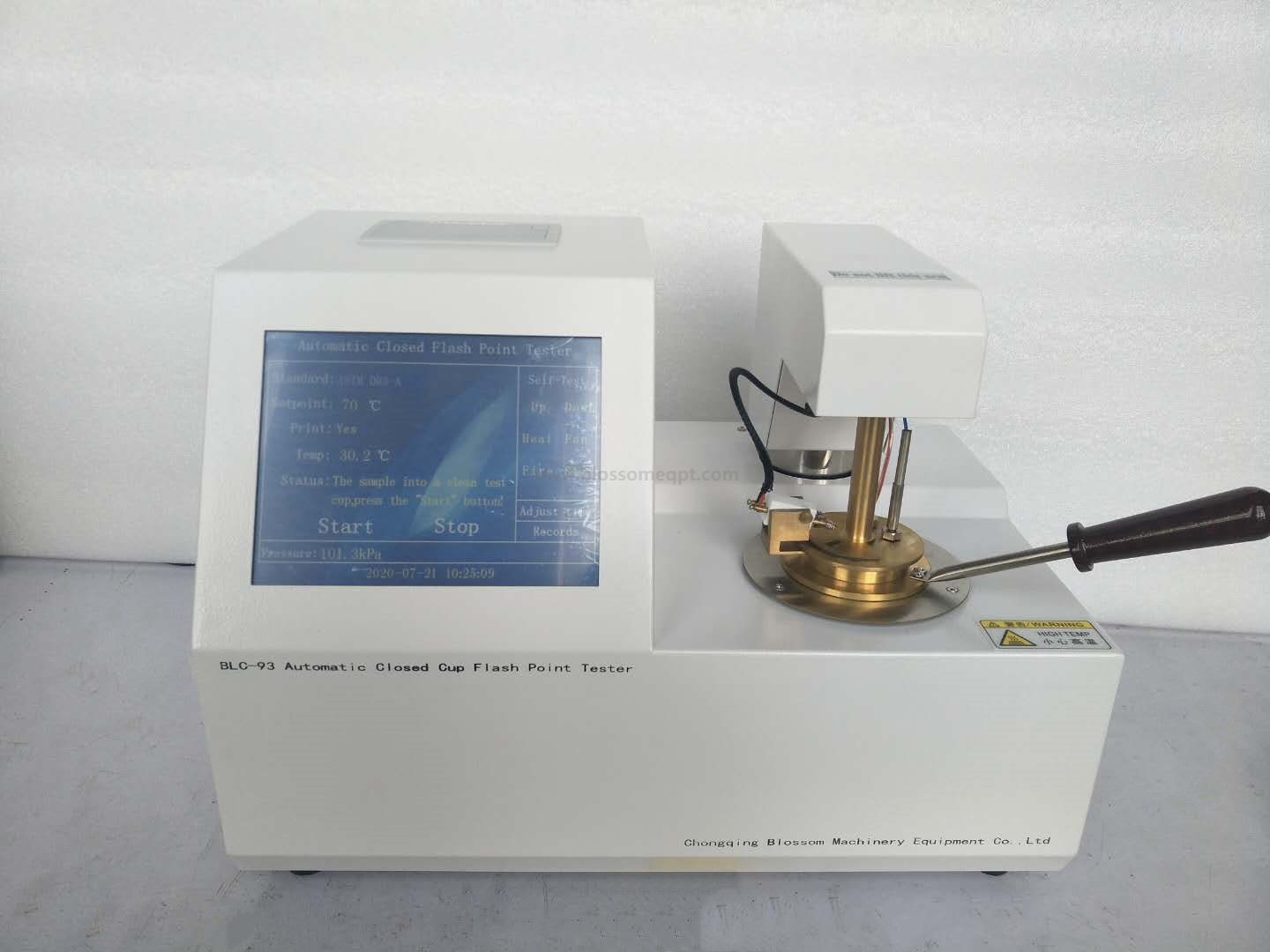

BLC-93
BLS
Main Features
1.Touch type color English LCD display;
2.Adaptive PID control algorithm to automatically adjust heating curve according to standard requirements;
3.Automatic stirring, ignition, detection, alarm, cooling and printing;
4.Safe airless source platinum alloy electric wire ignition method, which is stable and reliable with high test accuracy;
5.Powerful data storage that 300 results can be stored.
Main Technical Parameters
Display | Touch type color LCD display |
Measurement mode | Thermocouple differential detection |
Measurement range | Room temperature-350℃ |
Resolution | 0.1℃ |
Repeatibility | National standard：Tolerance ±1℃ at flash point value<104℃，±2℃ at flash point ≥104℃ International standard: Tolerance ±1°C at flash point ≤110℃, ±2℃at flash point >110℃ |
Printer | High-speed thermal printer, 56 mm paper width |
Temperature detection | Imported platinum resistance（Pt100Ω） |
Cooling mode | Forced air cooling |
Working environment | Temperature:10℃-45℃，Humidity: 30-80% |
Power supply | AC220V±10% |
Dimensions | 450*280*290 mm |
Weight | About 15KG |
Main Features
1.Touch type color English LCD display;
2.Adaptive PID control algorithm to automatically adjust heating curve according to standard requirements;
3.Automatic stirring, ignition, detection, alarm, cooling and printing;
4.Safe airless source platinum alloy electric wire ignition method, which is stable and reliable with high test accuracy;
5.Powerful data storage that 300 results can be stored.
Main Technical Parameters
Display | Touch type color LCD display |
Measurement mode | Thermocouple differential detection |
Measurement range | Room temperature-350℃ |
Resolution | 0.1℃ |
Repeatibility | National standard：Tolerance ±1℃ at flash point value<104℃，±2℃ at flash point ≥104℃ International standard: Tolerance ±1°C at flash point ≤110℃, ±2℃at flash point >110℃ |
Printer | High-speed thermal printer, 56 mm paper width |
Temperature detection | Imported platinum resistance（Pt100Ω） |
Cooling mode | Forced air cooling |
Working environment | Temperature:10℃-45℃，Humidity: 30-80% |
Power supply | AC220V±10% |
Dimensions | 450*280*290 mm |
Weight | About 15KG |
