BLS-6200
BLS
90278990
Application

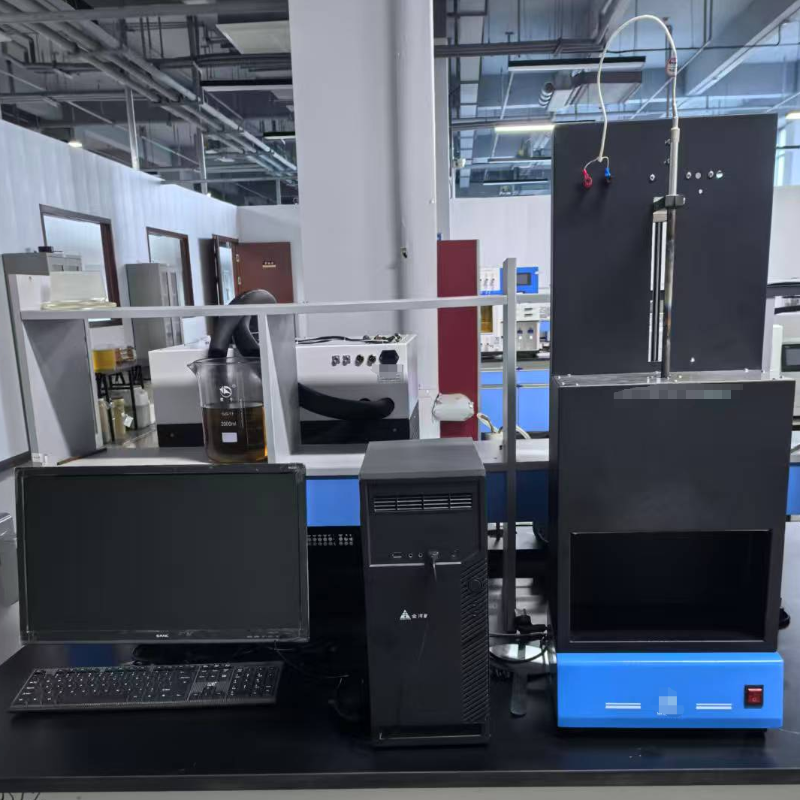

The BLS-6200 Quenching Oil Cooling Performance Tester is designed and manufactured strictly
according to the standard SH/T0220 Test Method for Cooling Performance of Heat Treatment Oils
(ASTM D6200, ASTM D6482). It is used to test the maximum cooling rate and cooling time of heat
treatment oils such as quenching oils. It is suitable for testing the maximum cooling rate, the temperature
at which the maximum cooling rate is located, the cooling rate at 300℃, the time to cool to 600℃, the
time to cool to 400℃, and the time to cool to 200℃ of water-based and oil-based cooling media under
standard laboratory conditions. Main Technical Parameters
1. Heating Method: Furnace body heating is PID self-tuning and automatically adjusted. 2. Temperature Range: Room temperature - 900℃
3.Furnace Chamber Dimensions: Not less than Φ25×200mm
4. Probe Type: Silver probe
5.Curve Display: Temperature-time curve display
6. Media Container: 300ml
7.Lifting Mechanism: Automatic lifting
8. Printing Function: Automatically prints temperature-time curves and cooling characteristics
9. Power Supply: AC220V±10%; 50Hz
10. Power Consumption: 2000W
11.Dimension:700*650*800mm
12.Weight:60kg
