ZY Series
BLS
Application & Function

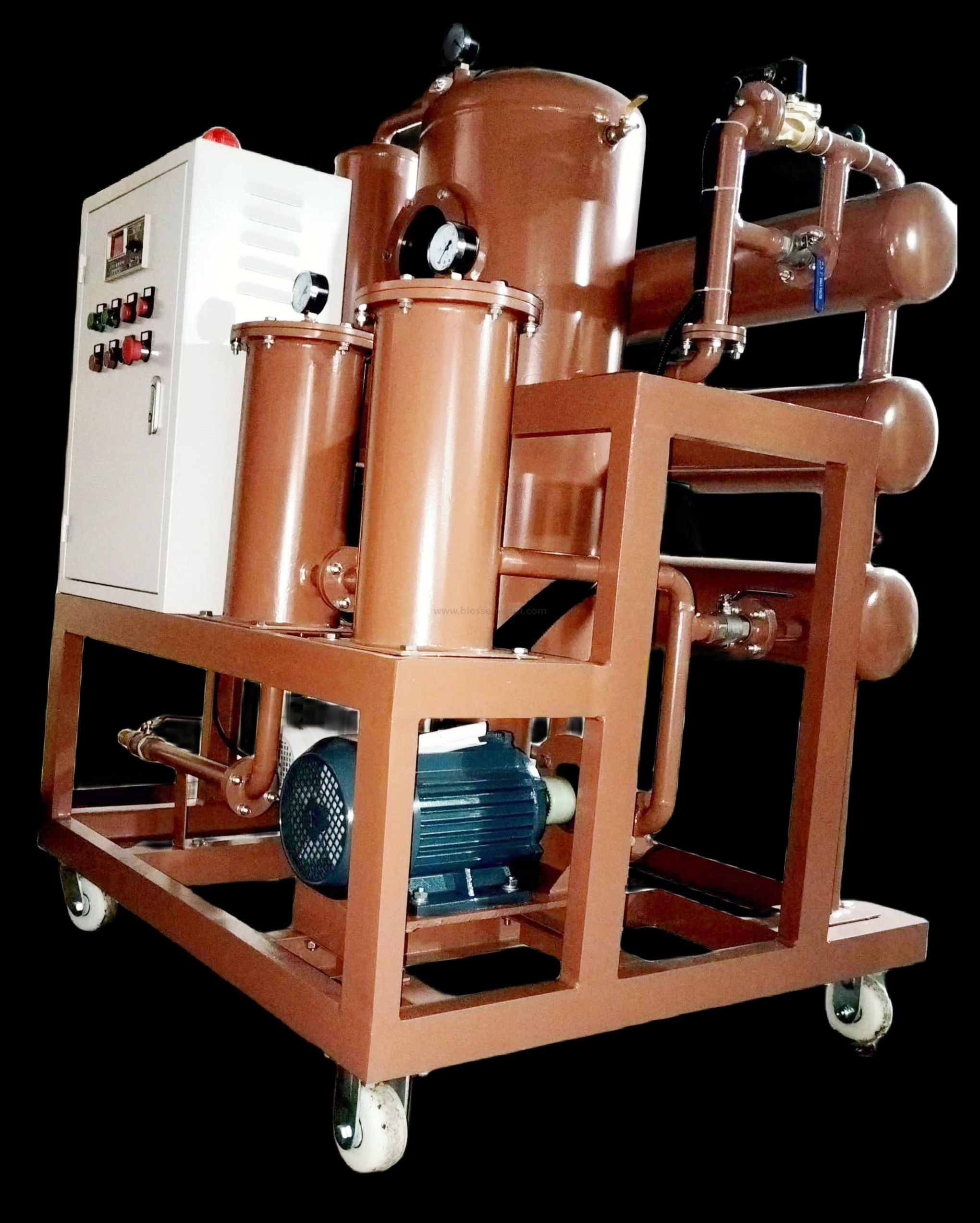

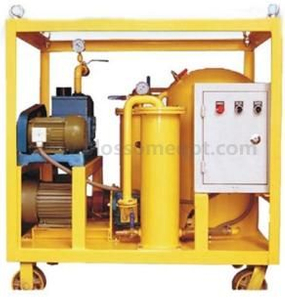

Series ZY highly effective vacuum insulating oil transformer oil purifier is mainly used to remove trace water,gas and other contaminants such as solid particles in the the waste oil, widely used to purify various unqualified electrical insulating liquids such as transformer oil, capacitor oil, switch oil and silicone fluids, etc. After process, oil puncture voltage(breakdown voltage BDV) can be greatly increased, the coefficient of loss tan delta can be significantly improved, and the oil dielectric strength can be maintained.
The below are the optional parts
1. Imported German Leybold or Busch vacuum pump;
2. Imported American or German oil pump;
3. Schneider electrical parts;
The following types are available
1.ZY-A Series: equipped with Programmable Logic Controller (PLC);
2.ZY-T Series: equipped with trolley;
3.ZY-E Series: equipped with weather-proof enclosure;
4.ZY-TE Series: equipped with trolley and weather-proof enclosure.
Technical Parameters
Model | ZY | 5 | 6 | 10 | 20 | 30 | 50 | 75 | 100 | 125 | 150 | 200 | 250 | 300 |
Flow Rate | L/min | 5 | 6 | 10 | 20 | 30 | 50 | 75 | 100 | 125 | 150 | 200 | 250 | 300 |
Vacuum Degree | MPa | -0.06~0.099 | ||||||||||||
Working Pressure | MPa | ≤0.5 | ||||||||||||
Working Temperature | ℃ | 20-80 | ||||||||||||
Power Supply | 380V, 50HZ, 3Phase(Customizable) | |||||||||||||
Residual Water | ≤5PPM | |||||||||||||
Impurity Size | ≤1 micron | |||||||||||||
Residual Gas | ≤0.1% | |||||||||||||
Breakdown Voltage | ≥70KV | |||||||||||||
Oil Appearance | Transparent | |||||||||||||
Working Noise | dB(A) | ≤70 | ||||||||||||
Heating Power | KW | 3 | 5 | 9 | 15 | 24 | 30 | 48 | 60 | 72 | 90 | 108 | 120 | 130 |
Total Power | KW | 4.1 | 6.12 | 10.5 | 16.8 | 26.2 | 33 | 53.5 | 66 | 78 | 100 | 120 | 135 | 148 |
Inlet Diam. | mm | 16 | 16 | 19 | 25 | 32 | 32 | 40 | 40 | 44 | 50 | 50 | 65 | 65 |
Outlet Diam. | mm | 16 | 16 | 19 | 25 | 32 | 32 | 40 | 40 | 44 | 50 | 50 | 65 | 65 |
Weight | kg | 130 | 150 | 180 | 240 | 290 | 380 | 650 | 800 | 950 | 1100 | 1350 | 1500 | 1600 |
Dimensions(mm) | L | 1050 | 1080 | 1100 | 1310 | 1500 | 1510 | 1700 | 1710 | 1730 | 1750 | 1780 | 1800 | 1850 |
W | 610 | 620 | 710 | 860 | 950 | 960 | 1250 | 1270 | 1300 | 1350 | 1400 | 1410 | 1450 | |
H | 1020 | 1050 | 1080 | 1350 | 1400 | 1410 | 1700 | 1750 | 1780 | 1800 | 1850 | 1900 | 1950 | |
