| Quantity: | |
|---|---|
XF-120MD
BLS
90278990
Application

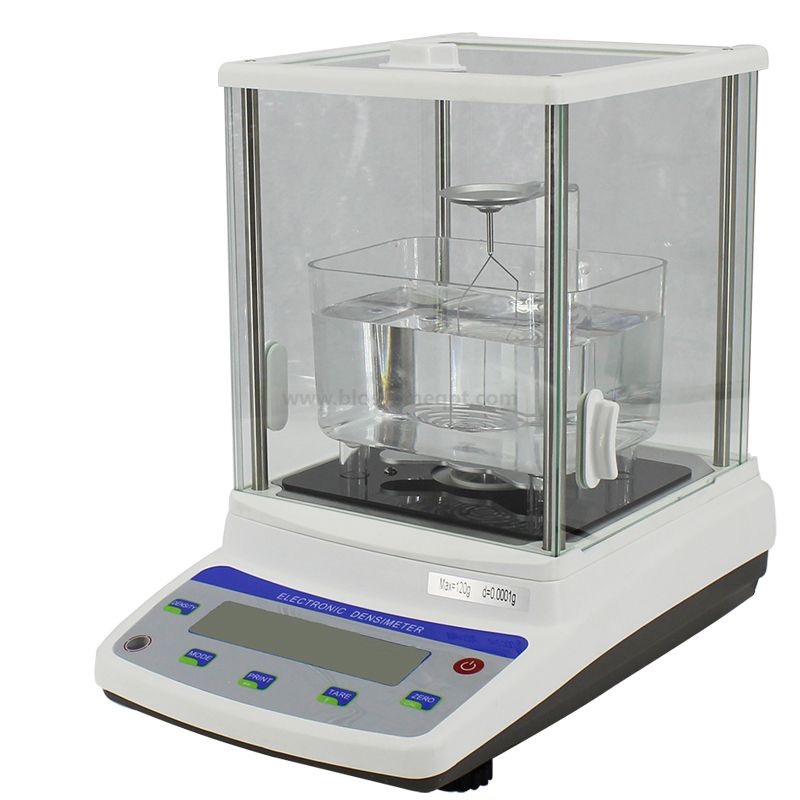

High-precision solid density meter XF-120MD adopts electromagnetic force sensor imported from Switzerland, with weighing accuracy of 0.1mg (0.0001g) and density accuracy of one ten-thousandth. It combines Archimedes principle with modern electronic technology, and only needs two measurement steps to read the density value. It is very suitable for density testing of PVC film, small particles, high-precision carbide, tungsten alloy, gold, colleges and universities, key laboratories, and materials research.
XF-120MD can also test the density of rubber products, plastic products, metal products, plastic particles, films, floats, powder metallurgy, seals, foams, viscous bodies, fasteners, pipes, plates, glass products, ceramic materials and other types of products.
Based on: ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T4196, GB/T4123, GB/T5586, JB/T7780… and other standards and specifications.
Technical parameters:
1. Model: XF-120MD XF-220MD 2. Density analysis: 0.0001 g/cm3 0.0001 g/cm3 3. Maximum weighing: 120g 220g 4. Minimum weighing: 0.0001g 0.0001g 5. Measuring range: 0.0001-99.9999g/cm3 |
Main features and functions:
1. Direct reading of specific gravity and density of solids, particles, films and floating bodies
2. Electromagnetic force sensing technology is used to make the hydrometer more accurate and faster; the reading is more stable; the temperature effect is smaller
3. Suitable for density detection of micro-sized products and high-density products
4. Density >1, <1 can be measured
5. Other solutions besides water can be used as the medium [solution compensation function]
6. Aluminum alloy density measurement accessories are used, which can be operated without lifting the cover and the measurement speed is faster
7. One-piece large-capacity PC measuring water tank (length 15.3 × width 10.7 × height 8.0cm), anti-corrosion, and more convenient for testing large solids [different sizes of water tanks can be customized according to the size of the measured product]
8. One machine for two purposes, measuring density and weight, one ten-thousandth electronic balance
9. Contains RS-232C computer connection interface
Standard accessories:
①One host, ②One water tank, ③One set of measuring tables, ④One set of tweezers, ⑤One power transformer, ⑥One set of particle measurement accessories, ⑦One set of floating body measurement accessories
Measurement steps:
①Put the product on the measuring table, measure the weight in the air, and press the Density key to remember.
②Put the product in water to measure the weight in water, press the Density key to remember, and display the density value.
