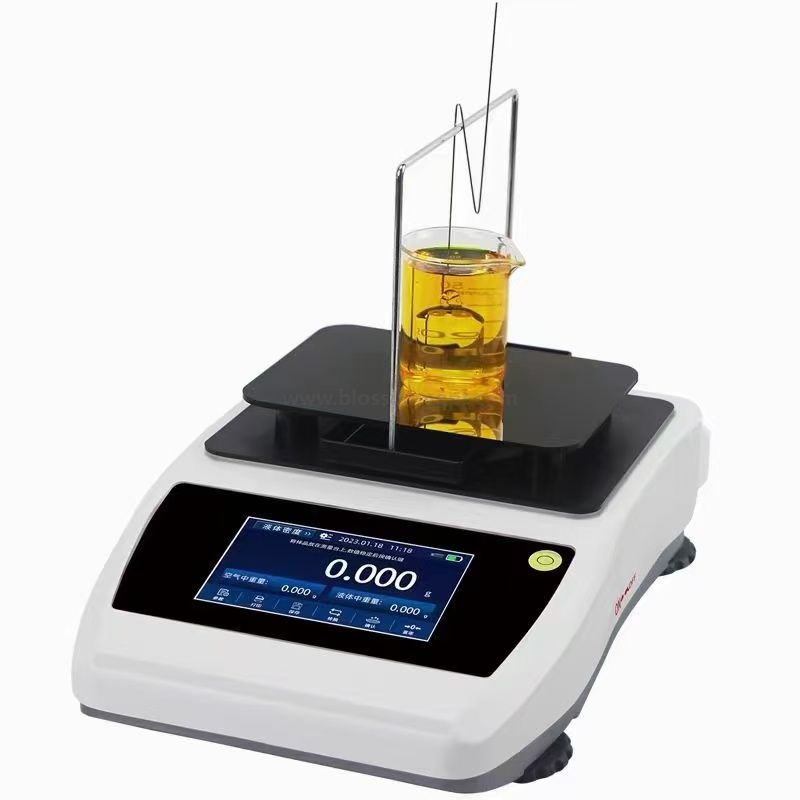

XFCNMD-L Multifunctional Liquid Density Meter

Application

The touch multifunctional liquid density meter only needs one step to instantly display the density value, which complies with GB/T 611, GB/T11540, GB/T2206, GB/T5518... and other standards and specifications. Xinxiongfa density meter combines modern electronic technology with Archimedes principle to directly read the density (specific gravity) value of various liquid solutions. It is one of the internationally used liquid density measurement methods. Compared with the traditional Wechsler balance method and specific gravity bottle method, it has extremely convenient operability. It can automatically determine whether the density is qualified or not by setting the upper and lower limits, and alarm prompts; when measuring different liquids, different specific gravity hammers can be purchased to test fluid liquids, corrosive liquids, and viscous liquids (pastes), and it has the function of measuring Baume degrees; the measurement accuracy is higher, the operation is faster, and it is suitable for occasions where multiple tests are performed continuously.

Suitable for measuring: various chemical solutions, chemical additives, modern energy, petroleum fuels, fine chemicals, chemical reagents, pharmaceuticals, additives, solvents, adhesives, paints and coatings, asphalt, chemical oils, drinking oils, food additives, beverages, animal urine, animal blood, flowing liquids, viscous liquids, volatile liquids, corrosive liquids, high-temperature liquids, alcohol, soldering flux, essence, blood, glycerin, sodium chloride, electrolyte, diesel, refrigerant, dichloromethane, sulfuric acid... and other similar liquids can be measured... and other fields.

Features

1. Adopting HBM sensor imported from Germany, stable weighing and accurate density value.

2. Touch screen operation, easy to operate, built-in guided test step prompts, simplifying and speeding up the operation process.

3. Only one step is needed to directly read the density value, saving a lot of test time, with Baume and concentration measurement functions, which can directly display Baume and concentration.

4. It has 3 groups of liquid measurement modes at the same time, which can be used with different standard weights

5. Convenient sampling, the measured sample only needs about 50ml.

6. The measuring cup is easy to clean, not limited by the small diameter of the specific gravity bottle, and can be used with other measuring cups of similar size.

7. Can measure the density of samples at room temperature to 100℃.

8 Can test corrosive liquids, viscous liquids, strong acid and alkaline liquids (need to purchase relevant liquid accessories).

9 Equipped with one-piece stainless steel measuring hook, simple installation and easy cleaning.

10. Store 100 sets of test values, and can automatically calculate the average, maximum and minimum values.

11. Set the upper and lower limits of the test product density to determine whether the material is qualified or not, with a buzzer function.

12. RS232 printer interface (USB interface can be customized), can be connected to thermal printers, label printers and PCs, and can customize the print content such as tester name, sample name, company name, etc.

13. The host can test the density of viscous liquids by selecting the corresponding liquid accessories.

14. According to the laboratory test environment, adjust the stabilization time, zero point and response speed of the density meter by yourself.

Measurement steps:

1. Place the measuring cup with the sample on the measurement placement plate and deduct the weight of the hook.

2. Use the hook to hang the standard weight and completely immerse it in the liquid to be tested, and display the density value. Select the switch to display Baume or relative density

Technical Parameters
