| Quantity: | |
|---|---|
MDJ-321L
BLS
90278990
I.Application

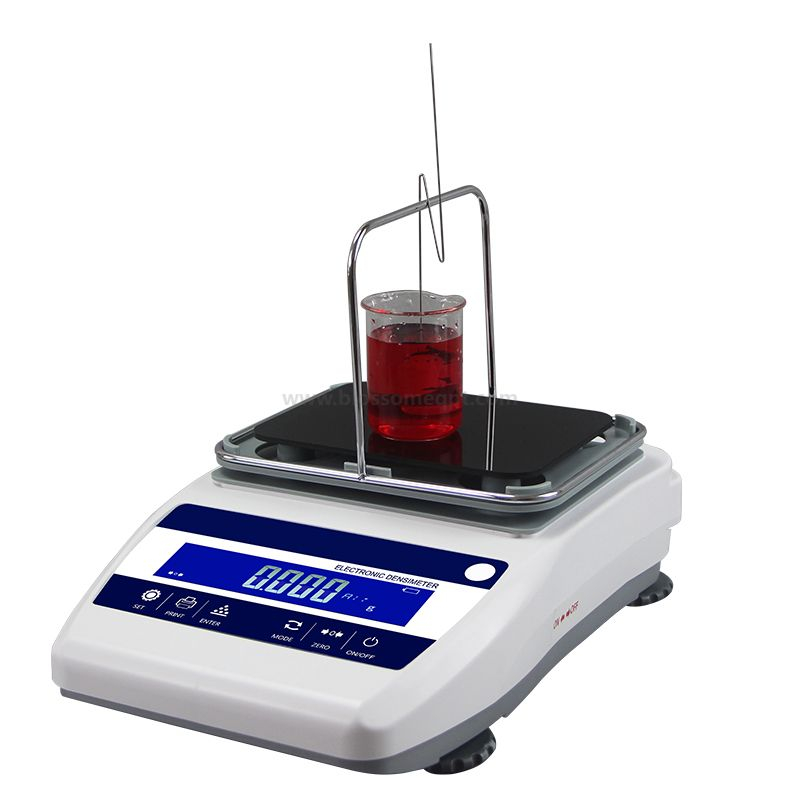

Liquid density meter uses German HBM imported sensor, with reliable measurement repeatability, one operation step to display density, no Wei's balance, tedious debugging and operation of the specific gravity bottle method, excellent performance, strong practicality, strong acid and alkali, viscosity, volatility, suspended liquid, emulsified liquid, high temperature liquid can be quickly measured
Application industry: various acid and alkali salt solutions, chemicals, oils, petroleum, cosmetics, paints, coatings, inks, flavors, fragrances, chemical solutions, chemical reagents, resins, adhesives, edible oils, beverages, pharmaceuticals, additives, synthetic agents, metal processing, thermal power, electroplating industry, construction, chemical trade, colleges and universities, testing institutions, teaching institutions.
Principle: According to GB/T611-2006, GB/T11540-2008, GB1666-81, GB/T5009.2-2003, GB/T 5526-1985 ,JJG171-2004,GB/T13531, T5526, T5009, GB/T11540, GB/T12206, GB/T5518 specifications. Apply the buoyancy method based on Archimedes principle to quickly read liquid density, Baume degree, and concentration.
II.Technical Parameters
Model | MDJ-321L | XF-3005L | XF-131L | XF-231L |
Density resolution | 0.001 g/cm3 | |||
Max weight | 300g | 300g | 120g | 200g |
Minimum weight | 0.01g | 0.005g | 0.001g | 0.001g |
Measurement range | Glass.weight: 0.001-2.200g/cm3 Stainless.steel.weight: 0.001-7.800g/cm3 | Glass.weight: 0.0001-2.2000g/cm3 Stainless.steel.weight: 0.0001-7.8000g/cm3 | ||
Result display | Density, Baume ,concentration | |||
Set | Density upper and lower limit Settings, specific gravity hammer specific gravity Settings, temperature compensation Settings | |||
Type of measurement | Fluid liquid, Corrosive liquid, viscous liquid | |||
Correction mode | 100g single key automatic correction, distilled water test positive result value | |||
Output mode | RS-232C standard communication interface, convenient test data output and printing | |||
Remarks | Corrosive liquids require corrosive accessories Viscous liquids require the purchase of stainless steel liquid components | |||
III.Features
1. Any solution can be measured quickly, and the operation is done in one step, which is convenient for multiple continuous and rapid tests.
2. It has the upper and lower limit functions of density, which can determine whether the specific gravity of the object to be tested is qualified or not. It is equipped with a buzzer device
3. Convenient sampling, the sample to be measured only needs 50CC, digital display, high measurement accuracy, simple operation, stable and durable.
4. The measuring cup is easy to clean and is not limited by the small diameter of the specific gravity bottle. It can be reused. Disposable measuring cups can also be used.
5. Contains RS-232C communication interface, which is convenient for connecting PC and printer. XF-68 printer can be purchased to print measurement data
6. It comes with a battery, suitable for on-site testing.
