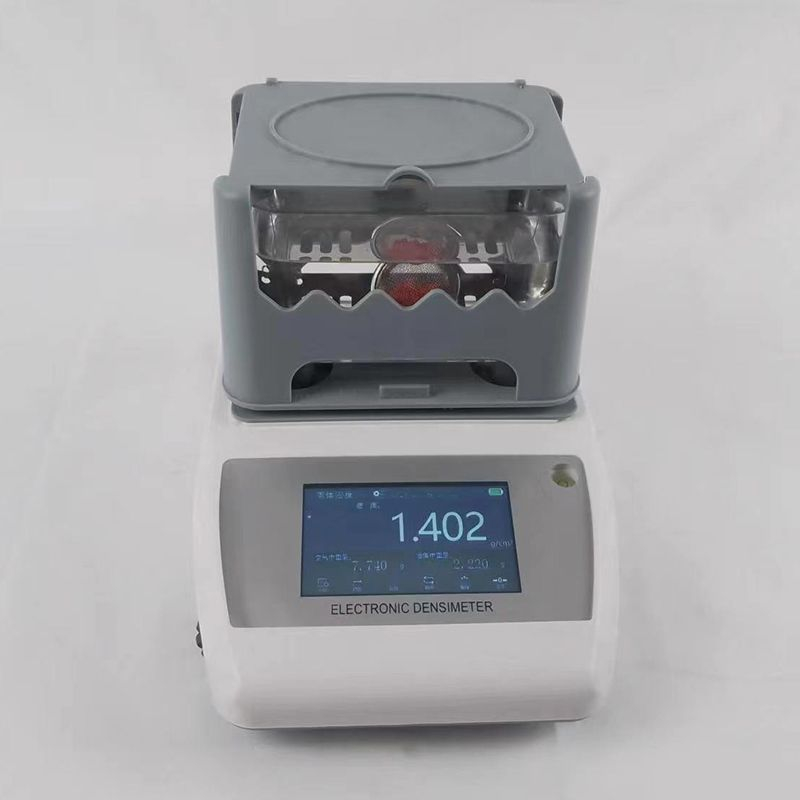

XFCNMD-S Electronic Solid Density Meter

Application

The multifunctional solid density meter can quickly measure and display the density value in just 2 steps, which complies with GB/T 611, GB/T11540, GB/T2206, GB/T5518... and other standards. The electronic density meter combines modern electronic technology with Archimedes' principle to directly read the density (specific gravity) value of various solids, which is extremely convenient to operate. It can automatically determine whether the density is qualified or not by setting the upper and lower limits, and alarm prompts; the measurement accuracy is higher, the operation is faster, and it is suitable for occasions where multiple tests are performed continuously.

Suitable for measurement: solid materials such as rubber, plastic, ceramic, cemented carbide, powder metallurgy, composite materials, etc. can be measured.

Features

1. Adopt German HBM sensor, stable weighing and accurate density value

2. Touch screen operation, easy to operate, built-in operation guide, simplified operation process

3. Read the density value directly in only 2 steps, saving test time

4. Can measure the density of samples at room temperature to 100℃

5. Store 100 sets of test values, and automatically calculate the average, maximum and minimum values

6. Set the upper and lower limits of the test product density to judge whether the material is qualified or not, with prompt function

7. RS232 printer interface (USB interface can be customized), can be connected to thermal printer, label printer

6. And PC, and can customize the print content such as tester name, sample name, company name, etc.

8. According to the laboratory test environment, adjust the stabilization time, zero point and response speed of the density meter by yourself.

Measurement steps:

1. Place the sample on the measuring table in the air and record the weight.

2. Completely immerse the sample in the water basket, and directly display the density value after recording the weight.

Technical Parameters
