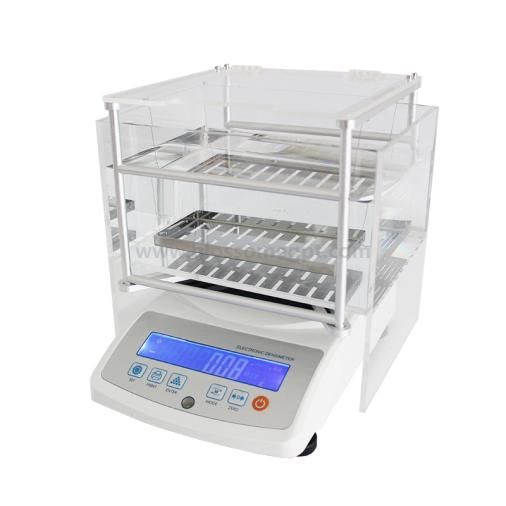

MD5000K
Application
Suitable for: pawnshops, jewelry industry, banking, jewelry testing centers, mining, precious metal recycling, precious metal material research laboratories, etc. This product requires no sample binding; in just two steps, it accurately and quickly displays the K value, percentage content, and density value of gold; the percentage content and density value of platinum; the percentage content and density value of silver; and the percentage content and density value of other alloys.
Measurement Types:
1. Precious metals such as gold, pure gold, K gold, platinum, and silver
2. Mixed metals or other alloy metals
3. Jewelry materials such as rings, necklaces, bracelets, watch straps, belt buckles, gold ingots, gold bars, statues, coins, etc.
4. Note: Cannot measure completely sealed hollow products, products inlaid with gemstones, or products where the density value is being measured for precious metals (such as rhenium and iridium).
Technical Specifications:
Model: MD5000K
Weighing Resolution: 0.1g
Maximum Weighing Weight: 5000g
Density Readability: 0.001 g/cm³
Purity Display: 0.1%
Range: Can test densities >1 and <1
Measuring Platform: ABS one-piece injection molded
Measuring Types: Any irregular gold, platinum, karat gold, silver, palladium
Result Display: Density, Volume, Purity %, Karat Number
Measuring Principle: Archimedes' principle buoyancy method
Measuring Time: Approximately 5 seconds
Measuring Tank: PC material one-piece injection molded transparent tank (Dimensions: Length 15.3 cm × Width 10.7 cm) (8.0cm x 8.0cm)
Parameter Settings: Water temperature setting, measurement solution medium density setting, density upper and lower limit setting
Calibration Method: Single-key calibration, automatic detection
Data Interface: Standard RS-232 interface
Functions and Features:
1. Distinguishes between genuine and counterfeit gold, karat gold, platinum, silver, and other precious metals.
2. Detects whether the content of gold, karat gold, platinum, and silver matches the labeled content.
3. Enables rapid measurement without sample cutting.
4. Allows for cyclic switching of K-value and purity % for gold, silver, copper, gold, copper, and gold and silver.
5. Features density measurement and ordinary gram balance functions.
6. Can use water as a medium, and can also use alcohol as a medium, with the ability to set the actual water temperature.
7. Includes RS-232 output interface; XF-68 printer optional.
