XFCNMD-1203S
Application

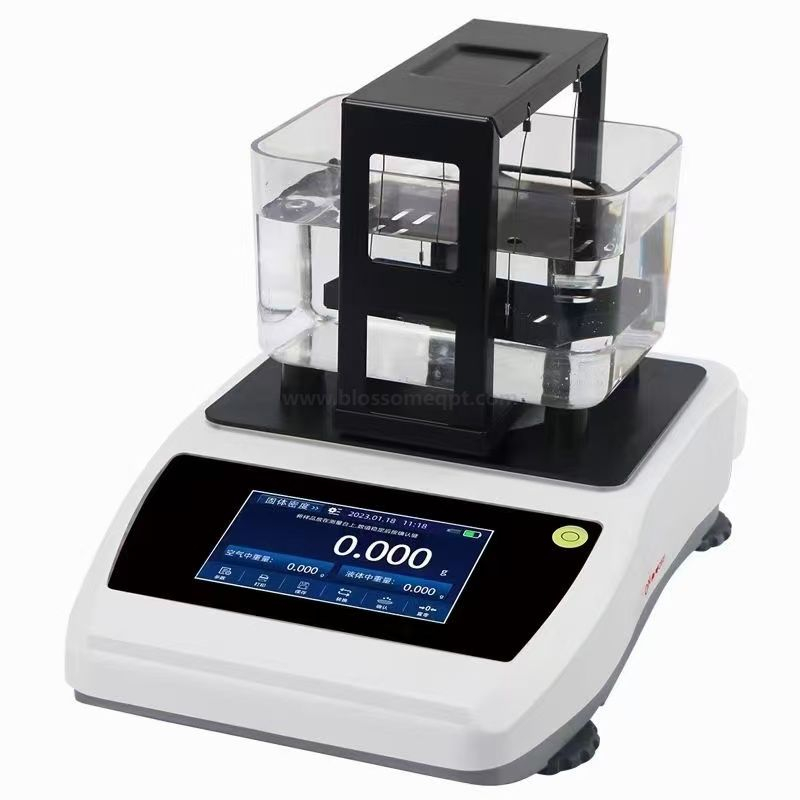

XFCNMD-1203S touch screen solid density meter is based on ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T 1933, GB/T4196, GB/T4123, GB/T5586, JB/T7780 and adopts Archimedes' water displacement method principle.
Widely used to test any irregular density greater than or less than one, rubber, plastic, wire and cable, food, composite materials, cosmetics, shoe materials, glass, precious metal hardware, plastic, wire and cable, auto parts, magnetic iron core, powder metallurgy, micro fan, tire, etc.; can directly read the average weight of solid, granular, thin film, floating sample in air, average weight in water, density value, volume, percentage.
Features
1. Adopt German HBM imported sensor, stable weighing, accurate density value.
2. 4.3-inch touch screen touch operation, easy to operate, built-in guided test step prompts, simplify and speed up the operation process.
3. Solution compensation setting, use water as medium, can also use other liquid media.
4. Automatically store 100 sets of test values, and can automatically calculate the average, maximum and minimum values.
5. The upper and lower limits of the test product density can be set to judge whether the material is qualified or not, with buzzer function.
6. Standard RS232 printer interface (USB interface can be customized), can be connected to thermal printer, label printer and computer PC, and can customize the print content such as tester name, sample name, company name, etc.
7. Multi-function host, optional liquid accessories can test liquid density, optional powder device can test powder true density, and can also achieve a density meter to test solid, liquid, powder three uses.
8. The stabilization time, zero point and response speed of the density meter can be adjusted according to the laboratory test environment.
9. Built-in battery, easy to carry.
Standard accessories: a density meter host, a measuring table, a water tank, a power adapter, a pair of tweezers, a calibration weight, an anti-floating frame [test density less than the density of water], a set of particle density test components [a glass beaker and a stainless steel tennis ball each], a manual, a certificate of conformity.
Technical Parameters
Model | XFCNMD-1203S | XFCNMD-2203S | XFCNMD-3203S |
Weighing resolution | 0.001g | 0.001g | 0.001g |
Maximum range | 120g | 220g | 320g |
Density display | 0.0001g/cm3 | 0.0001g/cm3 | 0.0001g/cm3 |
Display screen | 4.3-inch touch screen | ||
sensor | Germany HBM | ||
Density measuring platform | aluminium alloy post
| ||
Test base | Precision integrated aluminum base | ||
Density test type | Any solid, particle, or floating body with irregular density >1 or <1 | ||
Density test range | 0.001—99.999g/cm3 | ||
Test tank | PC material one-piece injection molded transparent water tank (size: length 15.3 × width 10.7 × height 8.0cm) | ||
Test method | Archimedes principle buoyancy method [covering saturation method, boiling method, wax sealing method] | ||
Test value | Density, volume, volume percentage, porosity, water absorption rate, density average, density minimum, density maximum | ||
Test mode | 1. Test non-absorbent solid density, volume, percentage 2. Saturation method to test water-absorbing solid body density, apparent density, wet density, volume, open volume, open porosity, water absorption rate 3. Adding liquid components can test liquid density, Baume degree, concentration 4. Adding powder components can test the true density of powder 5. Wax sealing method to test water-absorbing solid density and volume | ||
Parameters setting | Water temperature setting, measurement solution density compensation setting, standard material density setting, standard volume setting, wax sealing method wax density setting, density upper and lower limits setting, sample name setting, print content setting | ||
Test result saving | Automatic 100 groups of density value saving function, and automatically display the average value, maximum value, and minimum value according to the number of saved groups | ||
Data interface | Standard RS-232 interface, customizable USB interface | ||
Power supply | AC100V~240V 50HZ/60HZ | ||
