GGS42
Application
HPHT filter press is an equipment which can simulate deep well to test filter loss of drilling fluid or cement slurry in high temperature and high pressure. Pressure and temperature have an important impact on controlling filtering fluid. So, HPHT filter loss testing is an important target in drilling fluid control technology. HPHT filter press is designed according to API, which has high accuracy, little repetitive error, easy operation and precise testing data. It is widely used in various oil field, scientific research rooms and labs.

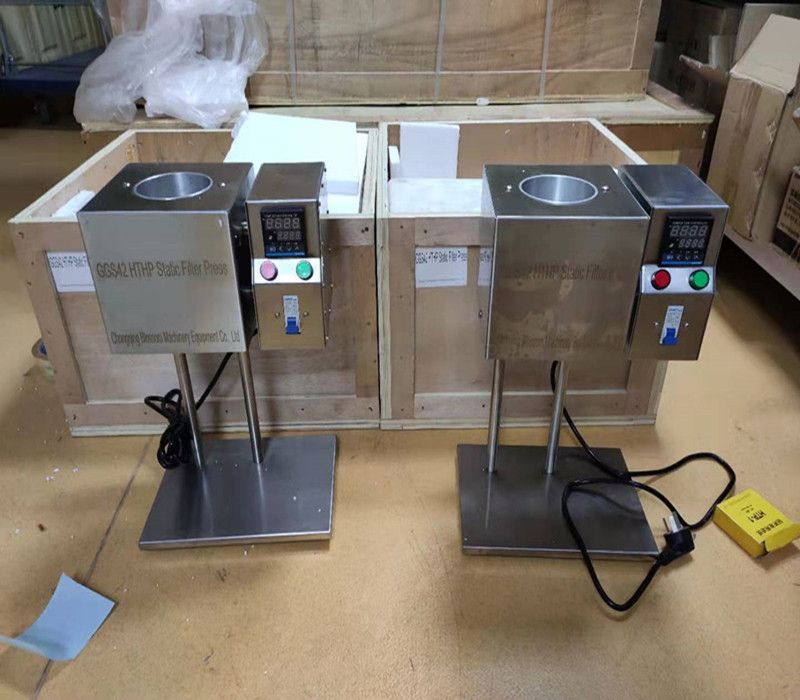

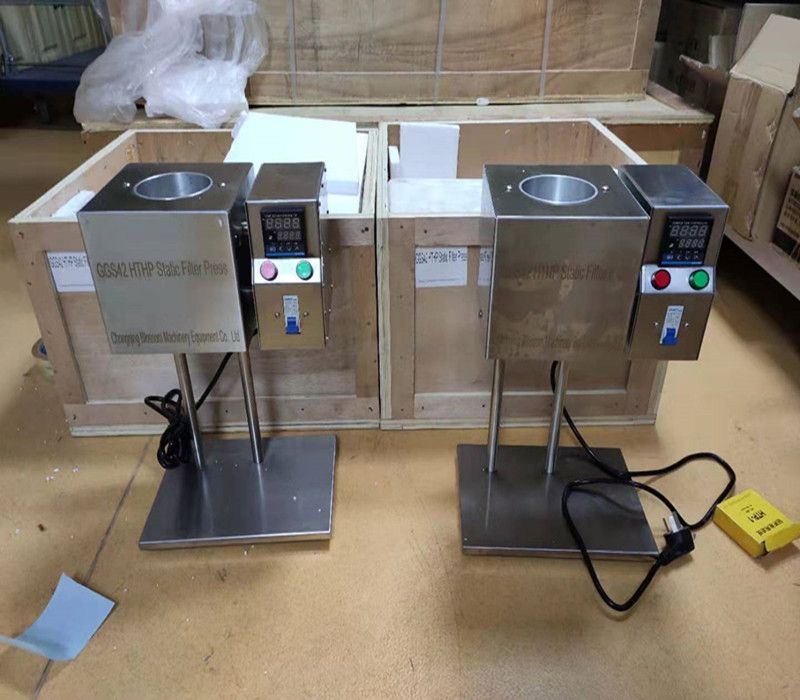

GGS42 High Temperature High Pressure Static Filter Press is a kind of analog analyzer. It can be used to measure the fluid loss through the filter paper and screen with an area of 22.6cm2 and the thickness of the filter cake within 30 mins when the pressure is 4.2MPa and the temperature is 150℃-170℃.
Parameters
1.power source: alternating current of 220V±10% 50Hz,power of 400W
2.air supply: 5MPa Nitrogen gas, carbon dioxide or compressed air
3.working temperature: ≤180℃
4.the working pressure of mud cup: 4.2 MPa
5.the pressure of back pressure regulator: 0.7 MPa
6.effective fluid loss area: 22.6 cm2
