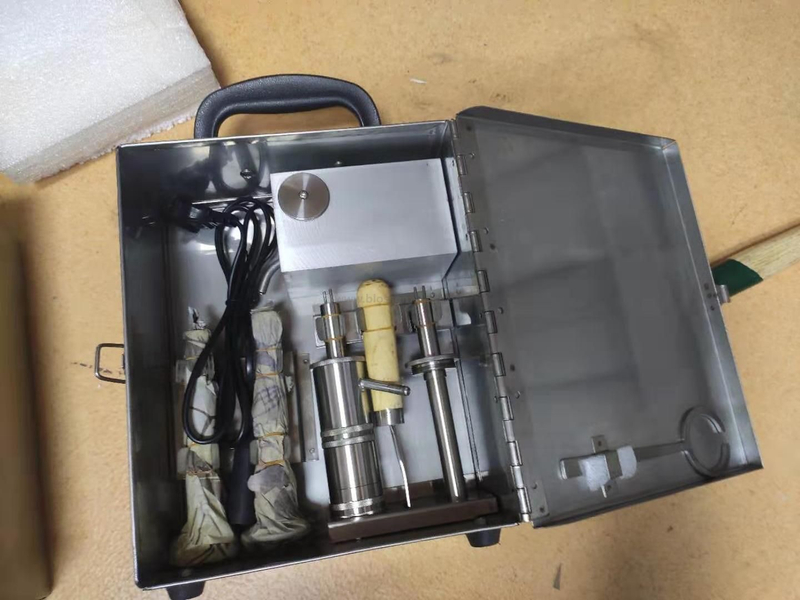

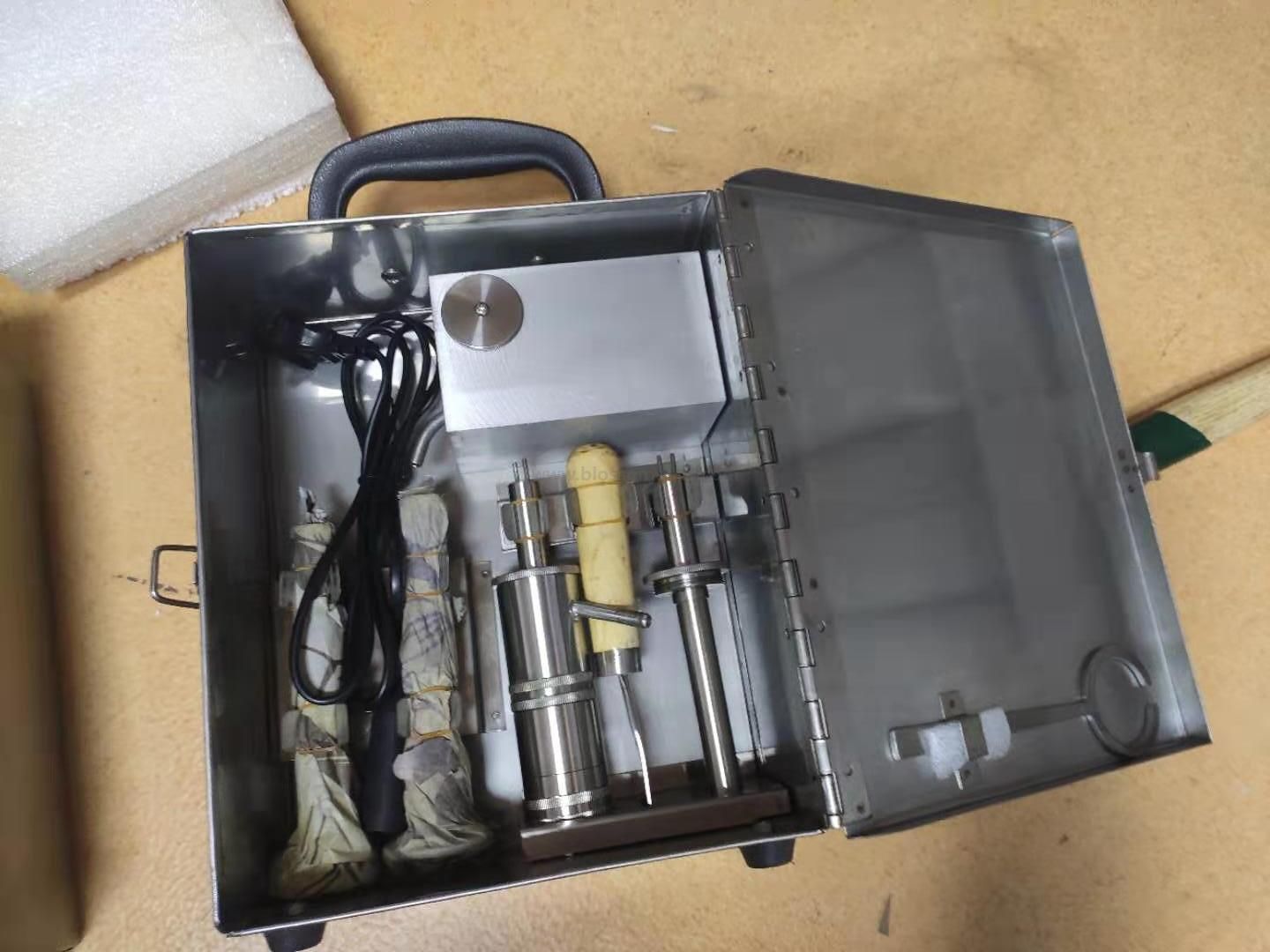

Drilling Fluid Solid Phase Content Analyzer ZNG-A

Application

The retort kit drilling mud tester  is an instrument used to separate and measure the volume of water, oil and solid phase in a drilling fluid sample. It is the basis for understanding the solid phase concentration and composition of water-based drilling fluid viscosity and fluid loss control. The ZNG-A retort kit drilling mud tester can easily distinguish the water, oil and solid phase components in the water-based drilling fluid by simple heating distillation, and the volume of each component is calculated by comparison. Therefore, the instrument provides a simple, convenient, accurate and directly readable method for determining the composition ratio of water-based drilling fluid.

Operational principle

Heat in the distiller have already known water radicle artesian well liquid sample of the physical volume, make its liquid mutually composition evaporate, congealed after collect in the graduated cylinder, liquid physical volume direct from the oil in the graduated cylinder mutually and water mutually read a value assurance.The total solid phase physical volume(suspend of and fuse of) gets from the bad value(the sample is total to accumulate-liquid mutually physical volume).Any solid of deliquescence will stay in the distiller, so have to pass by then a calculation can make sure to suspend a solid phase physical volume as well as pass a calculation to get a low specific weight solid phase and aggravate the opposite physical volume of material.

Parameters
