ZNH-1 Sand Content Test Kit for Drilling Mud Testing

Introduction

Sediment concentration is in the drilling fluid drilling fluid can not pass 200 mesh, that is, the wisdom for diameter greater than 0.074mm percentage share of the volume of drilling fluid.

Mud sediment analyzer is a reliable, effective and accurate measurement instrument sediment drilling device, it uses the filter decomposition method to measure the sand content.

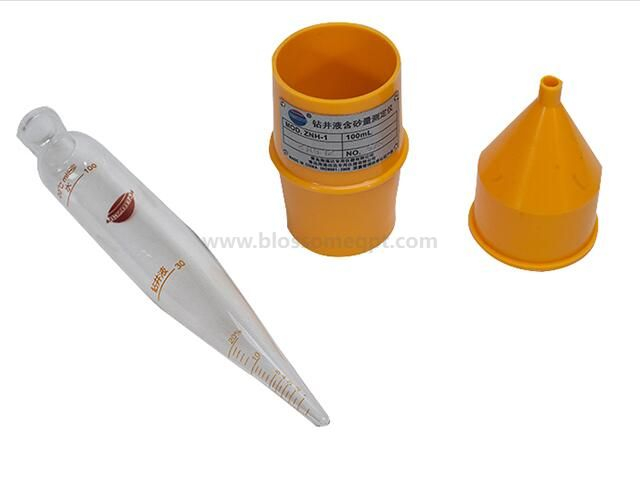

Instrument consists of three parts: the filter cartridges, funnel, glass cylinders.

Intermediate filter cartridge with 0.074mm (200 mesh) stainless steel mesh, glass cylinder should be added to the sample volume marked (30ml) glass measuring cylinder graduation line. Sediment can be directly read out the percentage, in this

glass cylinder marked with the percentage scale of 0 to 20 under the bar.

Parameters:

Filter pore size 0.74mm (200 mesh 0

100ml glass cylinder capacity of 0-20% sediment

Mud sediment analyzer components

The main components

# 165-17-01 plastic funnel

# 165-17-02 glass cylinder

Dimensions: 10 * 6 * 22cm

Weight: 0.35kg
