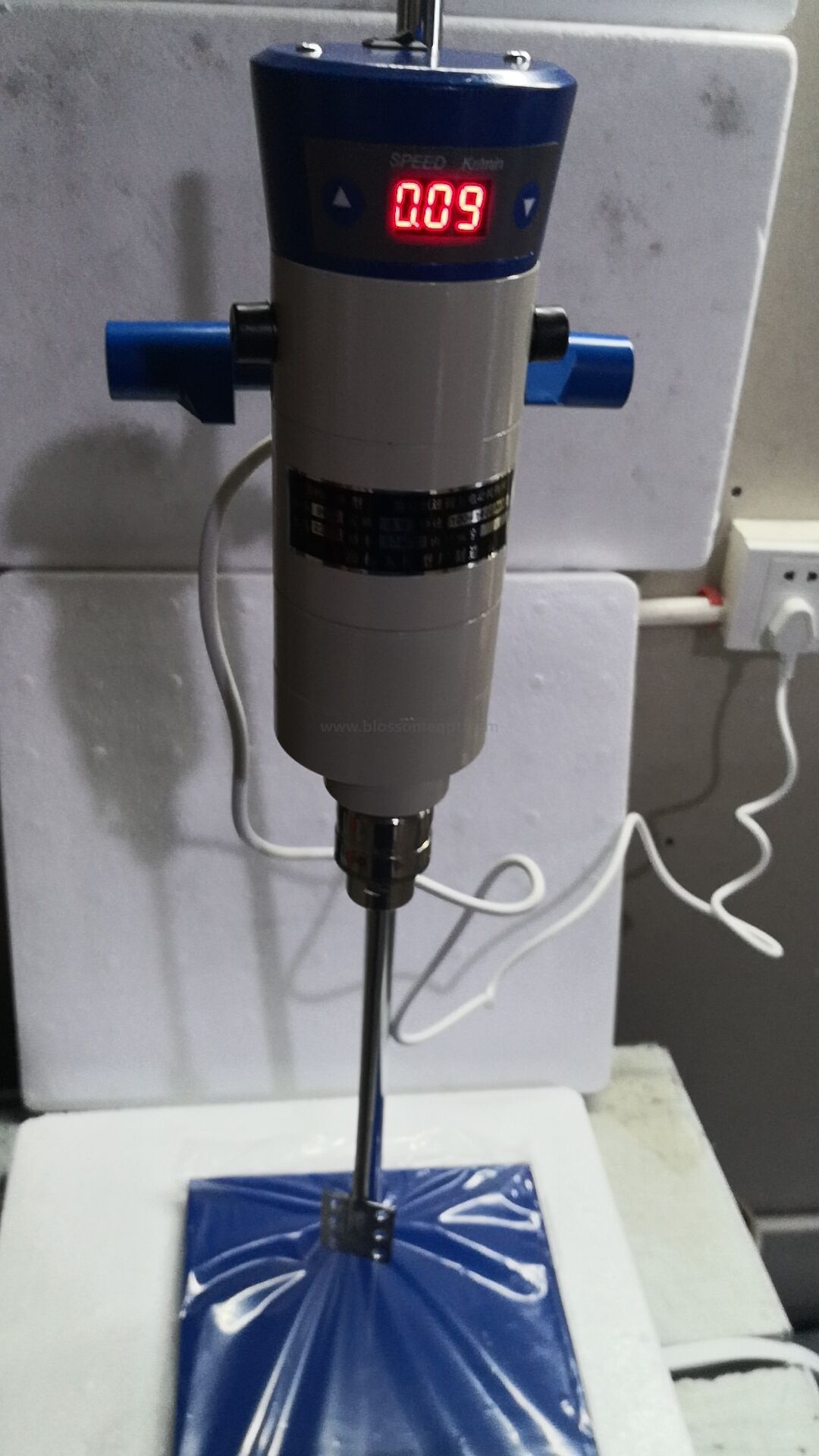

BLS-2
The constant speed mixer is suitable for biological, physicochemical, cosmetic,health care, food and other experimental fields. It is ideal experimental equipment for mixing and stirring liquid test medium. The equipment adopts new design concept, rational and compact structure, advanced manufacturing technology,large in torque output at low speed, and good in continuous performance. The drive motor adopts large-powered, compact, series-excited micro-motor, which is safe and reliable in operation; the control operation state adopts the numerical control touch mode stepless speed regulator. The speed regulation is convenient. The digital display shows the running speed state. The collected data is correct; the output is increased. The mechanism adopts multi-stage non-metallic gear transmission to increase the force. The torque is multiplied. The running state is stable. The noise is low, the special rolling head for the stirring rod, and the unloading is simple and flexible. It is an ideal equipment for scientific research, product development, quality control and production process applications in factories, research institutes, universities and medical institutions.
Main Specifications
(Power Supply:AC200V 50Hz)
Model | Input Power（W） | Output Power（W） | Rotation Speed Range（r/min） | Dimensions （mm） |
JB5O-S | 85 | 50 | 100~1300 | 300*260*760 |
JB90-S | 150 | 90 | 100~1400 | 320*300*800 |
JB200-S | 340 | 200 | 50~1200 | 350*250*720 |
JB300-S | 510 | 300 | 50~1500 | 350*250*720 |
JB500-S | 755 | 500 | 100~1500 | 400*360*850 |
Basic Structures
The series of mixer consists of drive motor, output boosting mechanism and operating state controller.
1. The drive motor adopts a series-excited miniature motor with large output power and compact structure. The design is safe and reliable.
2. The output boosting mechanism adopts multi-stage non-metallic gears to transmit the boosting force, and the output torque is multiplied with low noise.
3. The operating state controller adopts stepless / stepped regulator. The operating state is stable and the speed is convenient.
4. The stirring rod rolling head at the output shaft end of the mixer is easy to u
