LHG-2
Applications:
1. Study the cation exchange reaction in the drilling fluid using the re-prepared drilling fluid.
2. Determine the stability of drilling fluid additives.
3. Evenly mix liquid or solid matters.
4. Degas fluid.

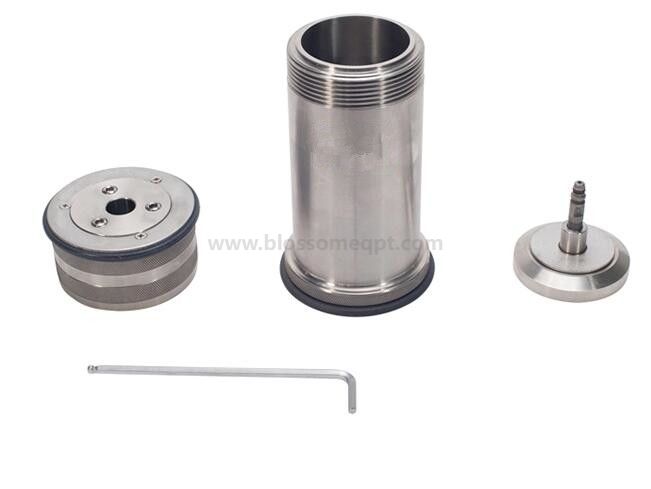

The vessel enables samples to be subjected to certain temperature and pressure in a state exposure or in a dynamic mode in a roller oven and still be maintained in a liquid state.
Technical Specification
Technical | Model | ||
LHG-2 | LHG-3 | LHG-2A | |
Temperature range | 50℃~240℃ | 50℃~300℃ | 50℃~240℃ |
Sample's flow rate in the kettle | 0.16 m/s | ||
Volume | 500ml | ||
Net weight / Gross weight | 5.22kg/5.38kg | 5.22kg/5.38kg | 5.22kg/5.38kg |
Overall dimensions | 100×100×240mm | 100×100×240mm | 100×100×240mm |
Packing size | 235×140×135mm | 235×140×135mm | 235×140×1 |
