ZNS-2A

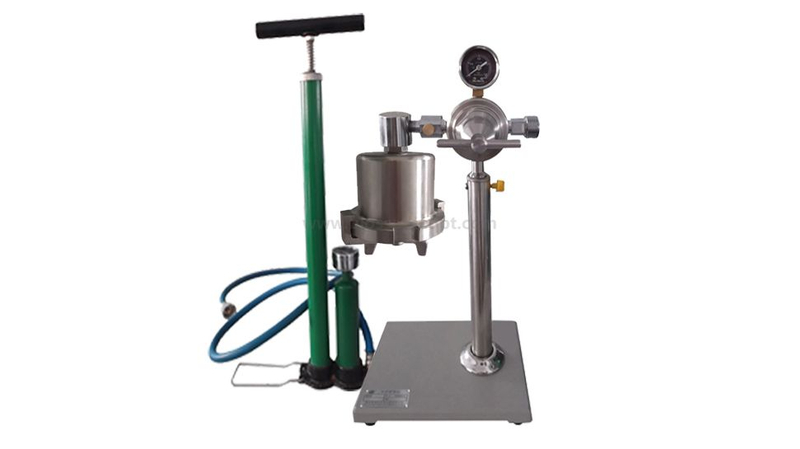

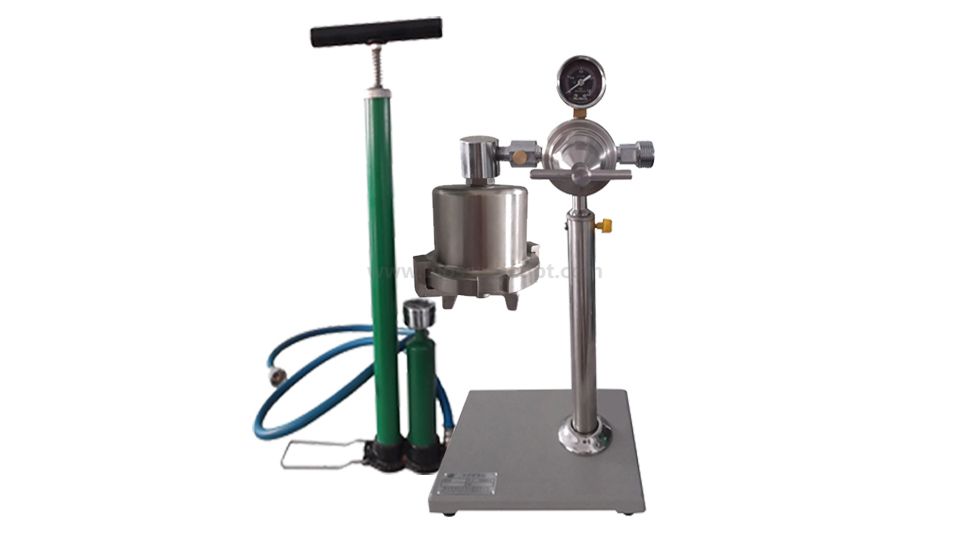

Under pressure difference, drilling fluid will have filter effect, which means free water of drilling fluid permeate to gaps and pores of rocks on side wall. Filter press is used to simulate drilling fluid’s filtration and cake’s forming characteristics under static condition.It equips aluminium drilling fluid glass, rated working pressure 0.69MPa, effective filtration area 45.6cm2, drilling fluid capacity240ml. And it equips pump air source supply. You can choose low-pressure pipe manifold with nitrogen gas cylinder for labs.
Technical parameters
1. Model:ZNS-2A 2. Name:MP Filter press 3. Configuration:A stainless steel cup of drilling fluid 4. Filtration area:45.6cm2 5. Working pressure:0.69MPa 6. Drilling fluid cup extreme pressure:1MPa 7. Drilling fluid injection:240ml 8. Outline Dimension:190×140×380mm 9. Package Size:620×300×490mm 10. Net Weight:5.1kg 11. Gross Weight:11.7kg |
Under pressure difference, drilling fluid will have filter effect, which means free water of drilling fluid permeate to gaps and pores of rocks on side wall. Filter press is used to simulate drilling fluid’s filtration and cake’s forming characteristics under static condition.It equips aluminium drilling fluid glass, rated working pressure 0.69MPa, effective filtration area 45.6cm2, drilling fluid capacity240ml. And it equips pump air source supply. You can choose low-pressure pipe manifold with nitrogen gas cylinder for labs.
Technical parameters
1. Model:ZNS-2A 2. Name:MP Filter press 3. Configuration:A stainless steel cup of drilling fluid 4. Filtration area:45.6cm2 5. Working pressure:0.69MPa 6. Drilling fluid cup extreme pressure:1MPa 7. Drilling fluid injection:240ml 8. Outline Dimension:190×140×380mm 9. Package Size:620×300×490mm 10. Net Weight:5.1kg 11. Gross Weight:11.7kg |
