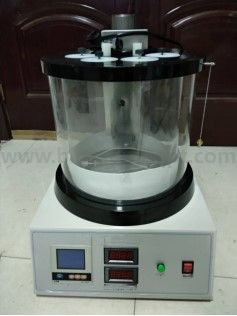

BLS-2170
Introduction
The instrument is designed and manufactured according to ASTM D2170, and the requirements stipulated in the industry standard T0619 Asphalt Kinematic Viscosity Test (Capillary Method) of the People's Republic of China. It is used to determine the kinematic viscosity of asphalt samples at the specified temperature according to the requirements specified in the T0619 standard. The experimental results of this instrument comply with the requirements of the Ministry of Communications of the People's Republic of China JTJ052 Testing Regulations for Asphalt Mixtures of Highway Engineering.
Main Technical Parameters
1. Working power supply: AC220V±10%, 50Hz.
2. Bath heating power: two gears, 1000w (auxiliary heating) 600w (temperature control heating).
3. Temperature bath temperature: room temperature~150.0℃.
4. Water bath temperature control accuracy:±0.1℃.
5. Mercury thermometer: Divide by 0.1℃, and the temperature range is 100~150℃.
6. Water bath capacity: 20L.
7. Number of samples: Number of capillaries inserted simultaneously: 4 pieces.
8. Stirring motor: power 6w, speed 1200r/min.
9. Environmental temperature: -10℃~+35℃.
10. Relative humidity: <85%.
11. Sensor: Industrial platinum resistance, index number Pt100.
12. Total power consumption: ≤1800W.
13. Capillary viscometer: A set of Kanfen counter-current capillary viscometer, a total of seven, models are 200, 300, 350, 400, 450, 500, 600 (that is, the inner diameter of the R tube is 1.02, 1.26, 1.48, 188, 2.20, 3.10, 4.00 mm)
