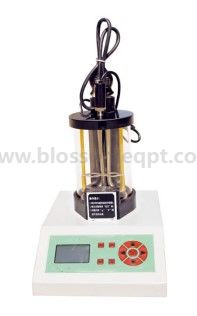

BLS-LRHD-IV
I. Introduction
The computer asphalt softening point tester(Ring-and-Ball apparatus) measures the softening point of the viscous petroleum pitch according to the ring and ball method. The instrument is suitable for the determination of softening points of various asphalts such as road petroleum asphalt, coal asphalt and liquid petroleum asphalt, and is the preferred instrument for highway and bridge construction and research institutions.
The instrument adopts microcomputer CPU control, infrared scanning detection, linear heating, and magnetic stirrer, which fully complies with the national testing standards ASTM D36 and GB/T4508-2010 Asphalt Duct Measurement Method and the Ministry of Communications Industry Standard T0606-2011 Asphalt Softening Point Test (Ring-and-ball method) requirements. The instrument has advantages of simple test procedure, automation, digitization, high measurement accuracy and wide range.
II. Main Features
1. Infrared scanning detection, heating and integrated design, easy to use;
2.Electronic measurement, microcomputer CPU control, speed adjustable automatic stirring; heating rate meets the requirements of 5 ± 0.5℃/min; accurate measurement results, strict control;
3.Fully automatic control,support unattended operation, automatic display test results after measurement.
III. Technical Parameters
1.Power supply: 220V ± 10%, 50Hz
2.Working environment: room temperature <35°C; no strong and directly shining light;
3.Measurement range: 5-80°C (water as medium); 80-180°C (glycerol as medium);
4.Minimum temperature index: 0.1°C;
5.Minimum time division: 1S;
6.Double four digital tube display;
7.Steel ball: Φ9.53mm, G = 3.5 ± 0.05g
8. Flat-bottom insulation dish: the capacity of glass products is not less than 1L, the depth of the dish is not less than 120mm, and the diameter is not less than 86mm;
9.Stirrer: stirring speed is continuously adjustable;
10.Heating rate: automatically adjust to 5.0 ± 0.5°C / min after three minutes of starting;
11.Heating power: ≤ 800W
