BLS-113
Introduction

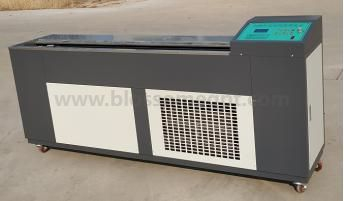

The instrument is suitable for measuring the elongation of materials such as asphalt and liquid asphalt after distillation and asphalt emulsion evaporation residue of various specifications and models. It is widely used in production, road construction and scientific research departments, and is more suitable for the test of modified asphalt, in line with the JTJ-E52-2011 standard of the Ministry of Communications.
Features
The instrument conforms to the new generation of high-tech products, adopts the external screw and linear guide positioning, and has stable stretching, high precision and convenient observation. The stretching operation system adopts electronic frequency conversion, stepless speed regulation, low noise, no running inertia. The control part is processed by microcomputer, which can store 15 sets of data.
Main Technical Parameters
1. Maximum measuring working length: 1.5m
2.Stretching slide moving speed: 0 ~ 120mm/min (adjustable)
3.Stretching motor power:370W
4.Electric heating tube power: 2KW
5.Refrigeration power: 2kW
6.Water bath temperature control range: 5 ~ 50℃
7.Temperature control accuracy: ± 0.1℃
8.Refrigeration capacity: 4000/minute
9.Working power supply voltage: 220V, 50HZ
