SYD-0620
Introduction

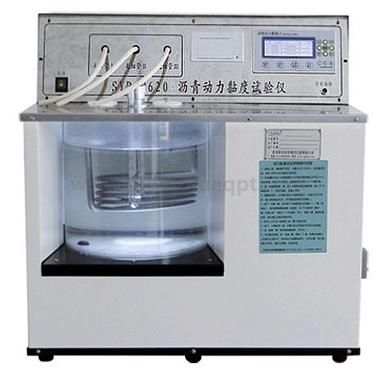

This instrument is made as per standards ASTM D2171 and T 0620-2000 Dynamic Viscosity Test for Bitumen (Vacuum Capillary Method) in JTG E20-2011 Specification and Test Methods for Bitumen and Bituminous Mixture for Highway Engineering and SH/T0557-1998 Test method for Viscosity of Petroleum Asphalt (Capillary Method). It is used to determine the dynamic viscosity of sticky petroleum asphalts by vacuum capillary viscometer.It is also suitable to determine other materials which viscosity range is 0.0036～20.000Pa.s.
Main Features
1. Automatic temperature and vacuum control.
2. Automatic timekeeping function.
3. Menu-style operation and user-friendly prompts.
Main Technical Parameters
1. Temperature control range: room temperature－100℃ Accuracy: ±0.01℃
2. Timekeeping range: 0-999.9S Timekeeping accuracy: ≤0.05S
3. Input power: 2.1KW
4. Vacuum degree: 300mmHg±0.5mmHg
5. Dimensions: 780X520X940mm
6. Weight: 71KG
7. Power supply voltage: 220V
8. Ambient temperature: 5～40℃
9. Environmental humidity: ≦85﹪
Introduction
This instrument is made as per standards ASTM D2171 and T 0620-2000 Dynamic Viscosity Test for Bitumen (Vacuum Capillary Method) in JTG E20-2011 Specification and Test Methods for Bitumen and Bituminous Mixture for Highway Engineering and SH/T0557-1998 Test method for Viscosity of Petroleum Asphalt (Capillary Method). It is used to determine the dynamic viscosity of sticky petroleum asphalts by vacuum capillary viscometer.It is also suitable to determine other materials which viscosity range is 0.0036～20.000Pa.s.
Main Features
1. Automatic temperature and vacuum control.
2. Automatic timekeeping function.
3. Menu-style operation and user-friendly prompts.
Main Technical Parameters
1. Temperature control range: room temperature－100℃ Accuracy: ±0.01℃
2. Timekeeping range: 0-999.9S Timekeeping accuracy: ≤0.05S
3. Input power: 2.1KW
4. Vacuum degree: 300mmHg±0.5mmHg
5. Dimensions: 780X520X940mm
6. Weight: 71KG
7. Power supply voltage: 220V
8. Ambient temperature: 5～40℃
9. Environmental humidity: ≦85﹪
