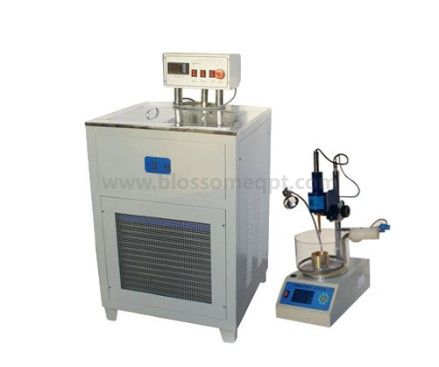

BLS-2801F
I.Introduction
This instrument is designed and made as per T0604-2011 Penetration Test for Bituminous Materials in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D5 Standard Test Method for Penetration of Bituminous Materials. It is used to determine the penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt. It is also suitable to test solid particle, powder, colloid and raw-food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.
II.Features
1.Large screen LCD English display.
2.It can test three times in a row, and automatically calculate the test average.
3. System test mode allows sensor detection and re-calibration.
4. The instrument needle bar kit can be adjusted up and down within 0-25mm by adjusting the twist.
5. The needle bar can be adjusted manually up and down.
6.There will be automatic prompts when the sensor exceeds the range.
7.The test time can be set to 5 seconds, 15 seconds, 30 seconds, 60 seconds.
8.Automatically control the temperature of the constant temperature water bath with high temperature control accuracy. It can also carry out low temperature test.
9.Equipped with real-time clock that can work when there is no power.
10.It can save 10 sets of test data (power down for 10 years), and can check the print at any time.
11.It has print interface.
12.It is equipped with RS232C communication interface.
13.Equipped with cold light source lighting system.
14. The constant temperature water bath adopts imported double compressor refrigeration, control with high precision intelligent meter and higher temperature control precision.
III.Main Technical Parameters
1. Minimum index: displacement: 0.01mm; Time: 0.1s; Temperature: 0.1℃2.Maximum range: 40mm
3.Needle connecting rod, weight, standard needle combined weight: 100 ± 0.05g, 150 ± 0.05g
4.Temperature control accuracy: 0.1℃
5.Test dish: metal, flat bottom, size: 70 × 45, 55 × 35 (mm)
6.Flat-bottom insulation dish: made of glass, capacity greater than 1.5L, the depth of the dish greater than 60mm; the sample dish with tripod is also equipped.
7.Low temperature constant temperature water bath internal dimensions: 50X40X30mm
8.Ambient temperature: 5 ~ 40℃
9.Ambient humidity:≤ 85%
10.Power supply: AC220V ± 10%, 50HZ
11. Dimensions: 600x500x1300mm
12.Weight: 75KG
13.Power: 2.5KW
