BLS-217
Summary

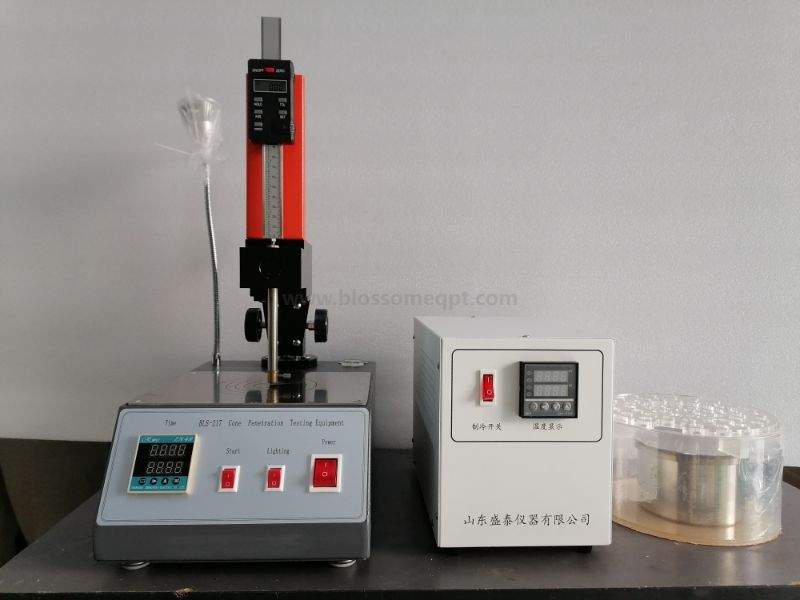

The instrument is designed and made as per national standard of People ’s Republic of China GB/T 45 0 9 - 20 1 0 Standard Test Method for Penetration of Bitumen, GB/ T2 6 9 Standard Test Method for Cone Penetration of Lubricating Grease and Petrolatum and T0 6 0 4 - 2 0 1 1 Asphalt Penetration Test in the Industrial Standard ofPeople , s Republic of China JTG E2 0 - 2 0 1 1 Specifications and Test. Methods of Bitumen and Bituminous Mixture for Highway Engineering as well as ASTM D5 Standard Test Method for Penetration of Bituminous Materials and ASTM D2 1 7 Standard Test Methods for Cone Penetration ofLubricating Grease. It is mainly used to determine the needle penetration of bituminous mixture and
cone penetration of lubricating grease ( or petrolatum) . It is also suitable to determine solid particle, powder, colloid an draw- food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.
I. Main technical features
1 . It adopts digital display to show the penetration number. Easy to observe.
2 . Six grade softening control. High timing control accuracy.
3 . The needle holder can be adjusted roughly and finely. It is convenient to adjust and exact to aim.
4 . Equipped with grease masher and constant temperature bath. The temperature in bath can be controlled automatically. Multipurpose and high cost performance.
II. Main technical specifications
1 . Measurement range： (0 ~60 0 ) penetration scale
2.Timing controller: 5s,8s, 10s, 12s,30 sand 60s,bias within±0. 1s
3 .Resolution: 0.01mm
4 .Penetration accuracy: ± 1penetration
5.Heater power: 200W;
6 .Temperature control accuracy: 25±0 . 1℃ (Note:The ambient temperature shall not exceed 20 ℃)
7 . Temperature control mode: High accuracy digital temperature controller
8 . Constant temperature bath: Hard glass bath
9 . Stirring: automatically stirred by a magnetic stirrer
10. Standard needle: 2.5±0.05g
11 .Standard cone: 102.5±0.05g
1 2 . Needle holder:It can be adjusted roughly and finely. Convenient toad just and exact to aim the sample.
1 3 . Others: Equipped with a cold light source and a magnifier; Convenient for operation and observation.
